Product Details:
Payment & Shipping Terms:
|
| Conductor: | Copper Claded Steel | Insulation: | Foamed PE |
|---|---|---|---|
| 1st Shield: | Bonded AL-Foil | 2nd Shield: | CCA Braiding |
| Jacket: | PVC | Power Wire: | Black, White |
| Packge: | 500FT, 1000FT, Plastic / Wooden Spool, Carton | ||
| High Light: | digital coaxial cable,hd coaxial cable |
||

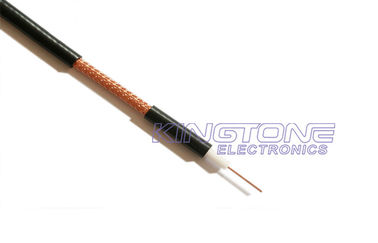

20 AWG CCS RG59 CCTV Coaxial Cable 95% CCA Braiding PVC Jacket for Camera
Quick Detail:
Description:
KT0705 RG59 CCTV Coaxial Cable 20AWG CCS B.ALF FPE 95% CCA Braiding
RG-59/U is a specific type of CCTV coaxial cable , RG59/U (Produced by KINGTONE) is perfect
for any type of surveillance camera installation. RG59/U has a characteristic impedance of 75 ohms.
KINGTONE using best raw material and best worker to produce RG59/U to meet high performance in
practical application. RG59/U is packed in 500FT/1000FT plastic/wooden spool, and will be layed on
pallet to protect the spool and easier carry.Because of good managing methods,
KINGTONE’S price of RG59/U is not high although our quality is really high.
Applications:
Suitable for Signal Transmission
■ CCTV
■ Local Area Network
■ Digital Video
■ Monitor / VDT Display
■ Security Camera
Specifications:
| KT0705 RG59 CCTV Coaxial Cable 20AWG CCS B.ALF FPE 95% CCA Braiding | ||
| Construction Parameters: | ||
| Inner Conductor | 0.81mm/0.032" /20AWG | Copper Clad Steel |
| Dielectric | 3.66±0.05mm/0.145" | Foamed Polyethylene |
| First Shield | Bonded Aluminum Foil | |
| Second Shield | Nom. 4.10mm/0.161" | Braiding |
| Strands | 0.12mm/0.005" | Copper Clad Aluminum |
| % Coverage | 95 nom | |
| Jacket | 6.00±0.1mm/0.236" | PVC (Color by your choise) |
| Application | For Use in Intermediate CCTV Run Lengths | |
| Limited Length | Typical run length up to | 500 Feet |
| Electrical Characteristics: | ||
| Capacitance | 52±1 pF/m | |
| Impedance | 75±3 Ω | |
| Resistance | The Max. at 20℃ shall be< 200 Ω/KM | |
| Return loss | between 5 and 1000MHz | > 21dB |
| Velocity of Propagation | 0.85 | |
| Shielding Effectiveness(>dB) | 70 | |
| Max Operating Voltage(KVMS) | 3 | |
| Operating Temp Range (PVC) | -20 ℃ to 65℃ | |
| RoHS | YES | |
| Attenuation(20℃): | ||
| Frequency (MHZ) |
Max Attenuation (dB/100ft) |
Max Attenuation (dB/100m) |
| 10 | 1.17 | 3.50 |
| 50 | 2.83 | 8.50 |
| 100 | 3.67 | 11.00 |
| 200 | 5.67 | 17.00 |
| 400 | 7.83 | 23.50 |
| 600 | 10.00 | 30.00 |
| 860 | 11.83 | 35.50 |
| 1000 | 13.17 | 39.50 |
| Order Informations: | ||
| Marking | KINGTONE KT0705 RG59 CCS B.ALF 95% CCA COAXIAL CABLE XXXXXX FT/M |
|
| Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | |
| Delivery time | Normally 20-25 days after received the deposit. | |
| More informations | Please contact with us. | |
| Online Service: | ||
| Skype | kingtone3 | |
| ICQ | 246632889 | |
Competitive Advantage:
1, From raw materials to final products, we perform intense quality checks to maintain our product quality:
A, Incoming material inspected by QC.
B, Manufacturing Process Control
C: Workers trained daily/weekly/monthly
D: Work instructions manual at each work station
E: 5S system implemented
F: Machine maintenance procedure
G: Quality Control and Final Inspection
The QC staff will check the material, process product
and final product according to the specification or test procedure.
2, Our R&D efforts center on reinforcing and developing element technologies
needed to support the future growth and success for customers and KINGTONE.
3, We know customers have urgent needs.
We are skilled at effective communication to interact with customers.
In order to provide prompt service, we can answer for you 7*24 hours.
4, We can Quickly and professionally answer for the inquire
5, More than 1000 kinds of cable, connectors and assembles can be produce and organized from us
6, Intime delivery
