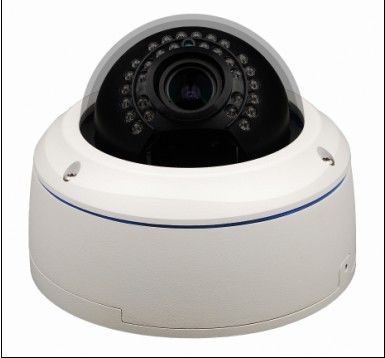

White / Black High Definition EFFIO-S CCTV Security Cameras Real Time Transmission

Large Image : White / Black High Definition EFFIO-S CCTV Security Cameras Real Time Transmission

Product Details:

Place of Origin:	China
Brand Name:	Hankwang
Certification:	FCC, ROHS, CE

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Delivery Time:	7-15 Working days
Payment Terms:	T/T in advance,Westem Union,L/C
Supply Ability:	30000-50000 pcs/month

Contact Now

Detailed Product Description

Features:	Weatherproof / High Definition / Real Time Transmission	Product Name:	EFFIO-S
High Resolution:	700TV Lines	Imaging Sensor:	1/3” Sony 960H Exview CCD
Waterproof Level:	IP66	Model:	NTSC / PAL
Highlight:	effio cctv camera , Eyeball Video Camera

White / Black High Definition EFFIO-S CCTV Security Cameras Real Time Transmission

Main features:

1/3" Sony 960H Exview CCD
High Resolution:700TV Lines
Digital Wide Dynamic Range
2D+3D DNR, HLC, OSD
DIS(Digital Image Stabilizer)
3.5-16mm Mega Korea ICR lens
Intelligent motion detection
DC12V

Technical parameters:

Specifications	HKR-80930HVS(Effio-S)
Model	NTSC	PAL
Imaging Sensor	1/3” Sony 960H Exview CCD
Scanning System	2:1 Interlace
Scanning Frequency	15.734KHz(H), 59.94Hz(V)	15.625KHz(H), 50Hz(V)
Total number of pixels	1108(H)x508(V)	1108(H)x596(V)
S/N Ratio	More than 50dB(AGC off)
Video Output	1.0Vp-p(75ohm, composite)
Resolution	Max 700TV Lines in color @ HR 7 mode
	(750TV Lines in B/W @HR 7 mode)
Min. Illumination	Color:0.3Lux, BW:0.1lux
	Color DSS:0.0005lux, BW DSS:0.0002lux, IR ON: 0.00lux
Exposure	Auto/Shutter PRI/Manual
White Balnace	ATW/One Push/ Manual / Indoor/ Outdoor/Auto
BLC	On / Off
AGC	Off/On(Max 30dB)
Shutter Speed	1/60~1/100, 000sec	1/50~1/100, 000sec
Flickerless	On/Off
Brightness	1~15 steps
DNR	On/Off/Manual
WDR	On/Off
HLC	On/Off
BLC	On/Off
E.Zoom	E-Zoom(Max x2~x32)/E-Pan/E-Tilt
Day&Night	Day/Night/Auto/Ext
Pivacy Mask	Off/16 positions
Chroma	Low/Mid/High
Motion Detection	On / Off (3 Zone Selectable)
Effect	Off/Negative/B/W
Communication	Baud Rate:2400/4800/9600/19200/38400/57600/115200
	Protocol:VISCA/ Pelco - D & Pelco - P & VISCA
Sharpness	1~16 steps
OSD	Built-in
Lens	2.8-12mm /4-9mm Mega Korea ICR lens
IR LEDs	30pcs
Operating Temperature	(-10°C ~ + 50°C)
Supplied Voltage	DC12 ± 10%
Options	DC12V

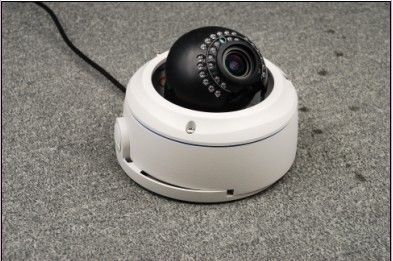

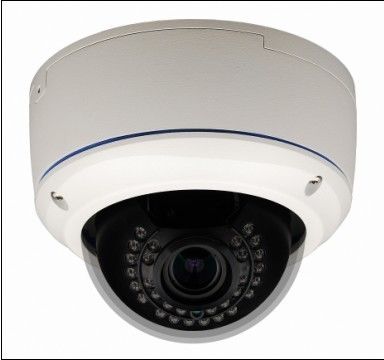

Detail Show
