1.3Megapixel CMOS AHD CCTV Camera Low Illumination Pan / Tilt Control Camera For School Security

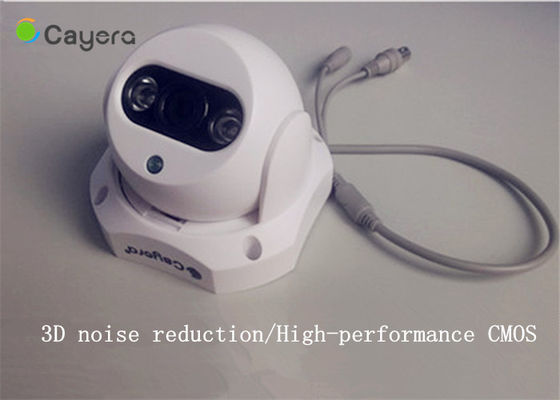

Large Image : 1.3Megapixel CMOS AHD CCTV Camera Low Illumination Pan / Tilt Control Camera For School Security

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Cayera
Certification:	CE, FCC
Model Number:	AHD-AP113

Payment & Shipping Terms:

Minimum Order Quantity:	200
Packaging Details:	655mm435mm450mm;45pcs /carton
Delivery Time:	1-4 weeks after get the full payment
Payment Terms:	T/T 100% before shipment
Supply Ability:	50000 pcs/per year

Contact Now

Detailed Product Description

Effective Pixels:	960P	Power Supply:	DC12V±10%
TV System:	PAL/NTSC	Image Sensor:	1/3" 1.3MegapixelCMOS(NVP2431+IMX238)
Minimum Illumination:	0.01Lux (0Lux IR On)	IR Length:	20m
Highlight:	cctv surveillance cameras , hd analog cctv camera

1.3Megapixel CMOS AHD CCTV Camera Low Illumination Pan / Tilt Control Camera For School Security

Features:

Support IR-CUT and color filter change automatically(IR-Cut),no any colour difference
Support mobile phone remote monitoring
1channel BNC HDAHD high definition video output
Support automatic electronic shutter function, adapt to different monitoring environment
Provide free Client Program, support mobile monitoring(iPhone, Android, etc) and network browsers
Advanced Backlight compensation
Compatible with free Central Management Software
Multi-level users management with password protection
Supports remote Pan/Tilt control

SPECIFICATIONS
Product Type	ahd camera
Effective Pixels	130W Megapixel CMOS
Image Sensor	1/3" 1.3MegapixelCMOS(NVP2431+IMX238)
Video Frame Rate	PAL: 25fps/960P NTSC: 30fps/960P
Electronic Shutter	1/50(1/60)-1/100,000sec
Minimum Illumination	0.01Lux (0Lux IR on)
Synchronization	Internal
TV System	PAL/NTSC
S/N Ratio	≥69dB (AGC Off)
Video Output	1-channel BNC HDAHD high definition video output
AWB	AUTO
BLC	AUTO
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D/3D
IR Length	20m
Lens	3.6mm
Power Supply	DC12V±10%
Working Environment	-10°C~+60°C, Less than 90% RH
Transmission Distance	Over 500m via 75-3 coaxial cable
