Product Details:
|
| High Light: | auto backup camera,night vision rear view camera |
||
|---|---|---|---|

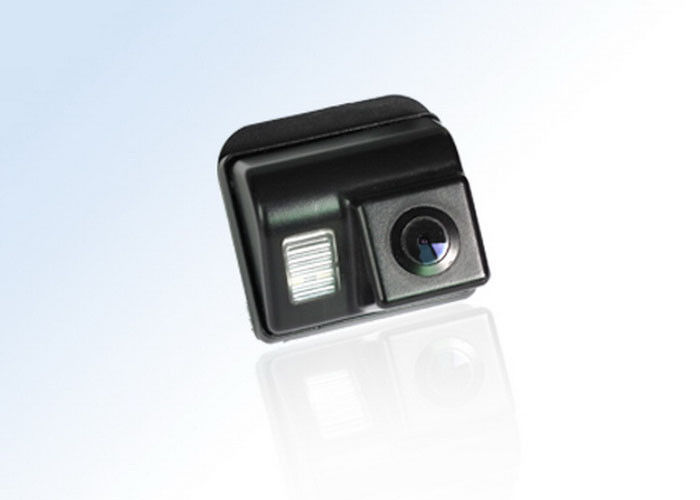

Rear View Auto Backup Camera Black Plastic 170 degree for MAZDA
Quick Detail :
Sensor : PC 7070 / 3089
Viewing Angle : 170 degree
Resolution : 480 TV Lines/ 800TV Lines
Material : Plastic (Black )
TV System : PAL / NYSC
Effective Pixels : 648 x 488 pixels / 962 x 504 pixels
Waterproof rate:IP 67
Description :
| S/N Ratio | Better than 48 dB |
| Resolution | 420 TV Lines / 720 TVL |
| Effective Pixels | 648 x 488 pixels |
| Connection | RCA / 4 PIN DIN |
| Sensing Area | 3.6mm x 2.7mm |
| Sensor | 7070/3089 |
| TV System | PAL / NTSC |
| Minimum Illumination |
0.3 Lux (day), 0 Lux (with IR) |
| Anti-vibration | 10 g |
| White Balance/BLC/AGC | Auto |
| Gamma Consumption | 0.45 |
| Scanning System | 2:1 Interlace |
| Video Output | 1.0vp-p, 75 Ohm |
| Current Consumption | Max. 150 mA |
| Electronic Shutter | 1/50(PAL)/1/60(NTSC)～1/100,000 Seconds |
| Sync. System | Internal |
Applications :
Fit for MAZDA
Connect to the display of car or add a rear view mirror display
Driving sefety aid system
Help Parking and Reversing
Specifications :
|
Environmental Temperature |
90% RH |
|
Sensor |
PC 7070 / 3089 |
|
TV System |
NTSC / PAL |
|
Effective Pixels |
648 x 488 pixels |
|
S/N Ratio |
Better than 48 dB |
|
Scanning System |
2:1 Interlace |
|
Minimum Illumination |
0.5 Lux (day), 0 Lux (with IR) |
|
Video Output |
1.0vp-p, 75 Ohm |
|
Image Resolution |
480 TV Lines/800 TV Lines |
|
White Balance/BLC/AGC |
Auto |
|
Electronic Shutter |
1/50(PAL)/1/60(NTSC)～1/100,000s |
|
Power Supply |
DC 12V |
|
Sensing Area |
3.6mm x 2.7mm |
Competitive advantages :
High Definition
CCD Sensor
Dustproof
Waterproof
Black Plastic
With Leds
Shockproof
Packaging & Delivery :
Packaging Details : Gift BOX +Carton
Delivery Details : 3 days
Our main products are automotive electronics and Bluetooth products, such as car DVR, reversing system, 360 degree panoramic driving and parking assistant system, car camera, wireless module, wireless audio & video module, bluetooth speakers, Bluetooth receiver, etc. As a integrated high-tech enterprise, we focus on R&D, marketing, production, and technical services. We have our own SMT workshop, Cable workshop, Assembly workshop, etc.
