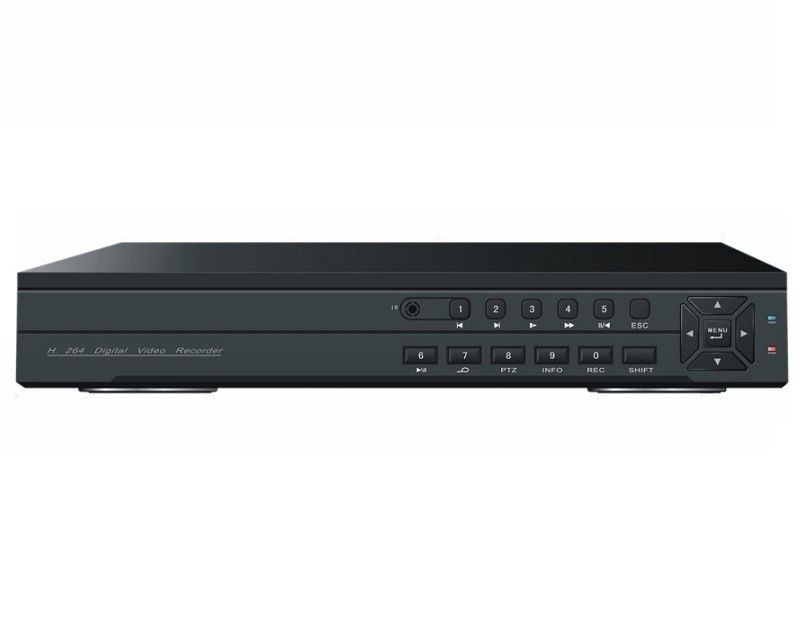

Newest Analog High Definition Technology, Hybrid CCTV AHD DVR Security Systems, 8CH AHD DVR, Recording for Analog Cameras, AHD Cameras, IP Network Cameras DR-A7808N
Feature:
Ø HD iDVR Three in one: DVR / HVR / NVR features 3-in-1, multi-mode input, support four analog video encoding, support for high-definition video mixing analog inputs + network support pure HD network video input.
Ø Step on the Internet: With XM cloud service, easy to achieve a variety of network penetrations, one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
Ø Compression algorithm ideal: H.264 High Profile compression algorithm, 30% decrease of stream due to advanced space-time filtering technology.
Ø Playback quality: Supports full real-time encoding video, full real-time playback of multi-channel synchronous decoding.
Ø Main and Sub Stream: Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality; Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Ø Mobile monitor: Support various mobile monitoring (iPhone, Windows Mobile, BlackBerry, Symbian, Android).
Ø Display: support VGA, HDMI HD output.
Ø Operation interface: Similar to Windows operating style, easy to get started with powerful mouse right-click function.
Ø Network: Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL, IP searches etc.) And perfect support (WEB, Client, SDK), easy to achieve interoperability.
Ø Browsers: Support IE, Chrome, Firefox, Safari browsers.
Ø Remote Access: 3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Ø Differentiation: Boot screen free replacement, more than twenty languages, over 10 sets of GUI interface, ten kinds of remote control, which make our products different from others.
Others: With unique black box technology, the whole process can be monitored, which greatly reduces maintenance costs.
Specification:
System | Main processor | Hi3521 |
Video | Video compression | H.264(High Profile) |
Encode capacity | 8*720P |
Decode capacity | 1*720P |
Multi-mode input | Pure analog: 8*720P/4*720P/8*AHD-L Pure network: 2*1080P+2*720P/8*720P Analog + network: 4*720P (analog) + 4*720P (network) |
Audio | Audio compression | G.711A |
Intercom | Support |
Record & Playback | Record mode | manual>alarm>motion detection>timing |
Playback | 1*AHD-M 3*AHD-N |
Storage & Backup | Space occupation | Video: 720P 20G / day* channel; 960H 12 ~ 20G / day * channel; Audio: 691.2M / day * channel |
Backup mode | Network, U-disk, USB burner, SATA burner |
Interface | Video input | 8CH BNC |
Video output | 1CH VGA, 1CH HDMI |
Audio input | 1CH RCA or 8CH RCA |
Audio output | 1CH RCA |
Alarm input | N/A |
Alarm output | N/A |
Network interface | RJ45 10M/100M |
PTZ control | 1*RS485, Support multiple PTZ protocols |
USB | 2* USB 2.0 |
HDD | 1*SATA or 2*SATA port (Max 4TB/per) |
Wireless | 3G, WIFI (extension via USB) |
Other | Power supply | 12V/2A or 12V/4A |
