Product Details:
Payment & Shipping Terms:
|
| Cable Length: | 1.2 Meters | Definition: | 420 TV Line |
|---|---|---|---|
| DC Power: | 12V / 24V | Monitor: | 7 Inch |
| High Light: | Cordless Backup Camera,Wireless Reverse Parking Camera |
||
U - support bracket wireless car backup camera wide angle high resolution
Specifications:
System general information, model No. CR0062 | ||
Monitor | Display | High resolution RGB TFT LCD 7" |
Resolution | 480 x 234 Pixels | |
Receiving sensitivity | ≤ 85dBm | |
Rated power | Input DC 12 Volt | |
Camera support | 420 | |
Camera | Transmitter | Integrated in camera |
| Sensor | 1/3" CMOS | |
| Infrared LED | 15pcs /850nm | |
Antenna | internal | |
Frequency | 2.4GHz | |
Lens | OV | |
Viewing angle | 110°± 15° | |
Pixels | 130M | |
Transmission range | Min. 100 meters | |
Working/storage | - 10 ℃ - 60 ℃ | |
Description:
U - support bracket wireless car backup camera wide angle high resolution

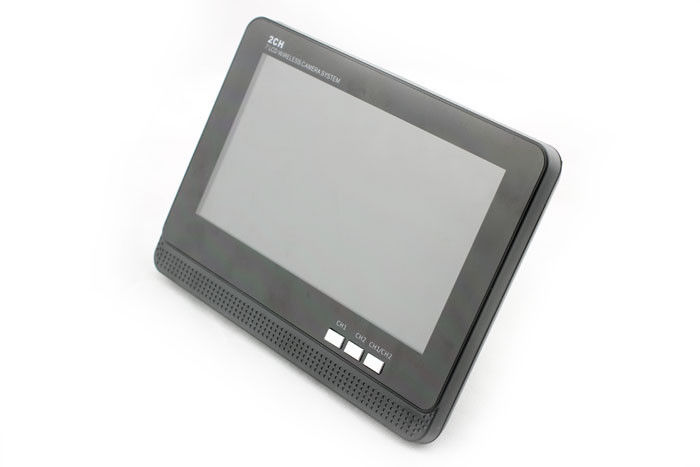

2 channel ,7 " LCD wireless camera systems allow you to see the video from 2 cameras at the same time on 1 monitor by half.there are 3 buttons to convert your viewing mode,to view objects in full screen type or divided image,just press CH1,CH2, or CH1/CH2.it is widely used for trucks,vans, agricultrual machine, freight, Hgvs, trailers, RVs, Seeder,farm tracktor,etc.
* Transmitting range is at least 100 meters, so no need wiring.
* Integrated transmitter in the camera, just connect the power to your vehicles.
* 110 degree wide viewing angle lens,recommend to install in front and behind your vehicles.
* 100% waterproof design for the camera
* 15pcs Infrared LEDs , 850nm to reach an effective night vision range for 5 meters.
* Quality CMOS sensors, auto white balance controll, brings High difiniton video image.
* Upgrade MCU processing unit to show 2 camers' video without time delay.
* Combined camera with transmitter together
* Adjustable up and down U type bracket.
* Extra suction cup for convenient usage.
Easy Installation :
* Put the camera on proper position,fix it with screws.
* Connect power cable red +, black - to power system correctly.
* Use the car kit to power the monitor.
Accessories :
1 x Monitor
2 x Camera
2 x Antenna
1 x Suction cup
1 x User manual
Applications:
vehicles, cars, trucks, trailers and so on.
Toubleshooting:
Problem | Situation | Solution |
Monitor without | The lens of the camera may be | Clean the lens. |
The camera is mounted incorrectly | Check camera’s position and alignment. | |
No power to the monitor or camera | Ensure power on and connect the wires | |
Monitor powered off | Check the car charge if there is power output | |
Camera is angled incorrectly | Adjust camera angle | |
Screen settings are incorrect | Adjust camera angle | |
Monitor is angled incorrectly | Adjust monitor angle using adjustment knobs. |
Competitive Advantage:
1. Senior engineer from Foxconn company to make the product more competitive on price and quality.
2. Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
3. Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
4. Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
5. New popular products developed every year to catch up the trend of this field,bring new market share with clients,can accept OEM/ODM.
6. Experienced sales persons in foreign trade department with more than 3-5 years exporting
experiences,quick response for pre-sale service,sale service and after-sale service
7. Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping shipping.
8. Quality for 1 year,free exchange for defective product within 1 year.
