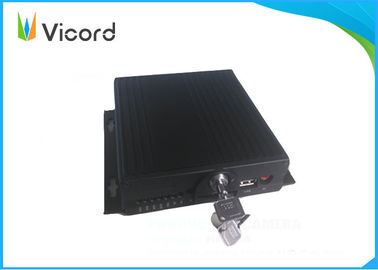

Security Car DVR Recorder 8 - 32V Real time Playback Anti-vibration

Large Image : Security Car DVR Recorder 8 - 32V Real time Playback Anti-vibration

Product Details:

Place of Origin:	China
Brand Name:	Vicord
Certification:	CE,ROHS, FCC
Model Number:	MCS1GNN

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Delivery Time:	1-4 weeks after get the full payment
Payment Terms:	T/T ; 30% prepayment upon PO release and balance to be paid before shipment
Supply Ability:	50,000 Pcs/Year

Contact Now

Detailed Product Description

Play Quality:	D1/Half-D1/CIF/QCIF	Encode Capacity:	4ch D1 Real-time（default CIF）
Record Mode:	Manual>alarm>motion Detection>timing	Video Input:	4ch
GPS:	Support	Working Temperature:	0℃-＋55℃
Dimension:	130（L）147（W）36（H）mm
High Light:	mobile dvr recorders , car dvr recorder

Security Car DVR Recorder 8 - 32V Real time Playback Anti-vibration

Features

support 1*SD Card Storage;( SD maximum 64G)
G. 711 audio compression, 4CH audio input, 1CH audio output
Multiple language options, covers almost all main languages all over the world
Playback: 1 or 4channel playback at the same time
Industrial Level design,smart mini size with professional aviation input, easily installation
With various decoding protocol and baud rate, our products support PTZ, cameras and speed dome etc. Control
Video recording mode: Auto recording, alarm recording, timed recording, manual recording

Specifications:

	Model	MCS1GNN
system	Main processor	Industrial Embedded Microcontrollers
	Operating system	Embedded LINUX
	System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
interface	user interface	support 16-bit true color graphical menu interface and mouse operation
interface	preview screen	1/4
video	vdieo standards	PAL(625line,50f/s)；NTSC(525line,60f/s)
	vdieo compression	H.264(High Profile)
	display quality	monitor:D1
	play quality	D1/Half-D1/CIF/QCIF
	encode capacity	4ch D1 real-time(default CIF)
	decode capacity	2ch D1 real-time
	motion detect	Zones: 392(22*18)detection zones per window,multi-level sensitivity
audio	audio compression	G.711A
audio	bidrectional talk	support
Record & playback	record mode	manual>alarm>motion detection>timing
	local playback	Any channel playback simultaneously(1-4ch)
	search mode	Time/calendar/event/channel search
Storage & backup	space occupation	video:CIF 4~5G/ daychannel, D1 8~10G/ daychannel； audio:691.2M/ day*channel
	record storage	SD,MAX64G
	backup mode	Network backup,USB,USB Burn
interface	video input	4ch
	video output	1ch RCA (1.0Vp-p,75Ω),1ch cable
	audio input	4ch
	audio output	1ch(200-3000mV,5K)
	alarm input	no
	alarm output	no
	net interface	no
	PTZ control	One RS485,one RS232
	USB	One USB
Mobile interface & functions	GPIO	Support OSD overlay, storage(optional) etc
Mobile interface & functions	GPS	Support
	others	support delay boot up/shut down,timing boot up/shut down
complement	player	mobile exclusive player,Support google map,showing vehicle running track and data.
complement	SDK	Free SDK for second development
others	Power supply	Wide voltage input 8V~32V,15% overvoltage protection,500MS 60V voltage surge
	External power supply	Support 4* 12V controllable power supply for external camera,independent 12V/1.5A,5V/1.5A output
	Power consumption	Less than 10W
	Working temperature	0℃-＋55℃
	Working humudity	10%－90%
	Atmospheric pressure	86kpa－106kpa
	Dimension	130(L)147(W)36(H)mm
	weight	420g
