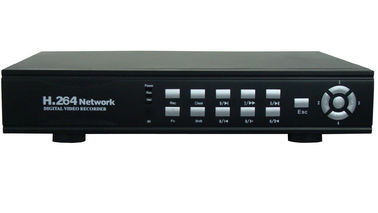

Economical 8 ch standalone H.264 dvr security system remote control Support client software
Specifications:
|
Channel: |
8-channels |
|
Video signal: |
PAL system (25 frames / sec) NTSC system (30 frames / sec) |
|
Video input: |
BNC(1.0Vp-p/75Ω)×8 |
|
Video output: |
Composite Video: 1.0V pp/75Ω, BNC connector × 1(VGA × 1) |
|
Network mode: |
10/100M adaptive, support LAN, WAN and ADSL dynamic IP networking |
|
Monitoring methods: |
IE monitoring, Smart phone monitoring, |
|
Control: |
support for the mouse, remote control |
|
Backup mode: |
support USB and Network Backup |
|
Resolution: |
PLA system: Display Resolution: 720 × 576 compressed resolution: 352 × 288 NTSC system: Display Resolution: 720 × 480 compressed resolution: 352 × 240 |
|
Compression Standard: |
H.264 |
|
Hard disk: |
one large hard drives 2000G |
|
Security features: |
two password management |
|
Power supply: |
DC 12V/2A |
|
Power: |
6W (without hard drive)
|
|
Temperature: |
Operating temperature: +5 ℃~ +50 ℃; humidity: <90% Storage temperature: -20 ℃~ +70 ℃; humidity: <95% |
|
Dimensions: |
357*100*280mm(W × H × D) |
|
Weight: |
Net weight: 1.5Kg Gross Weight 2.3kg |
Description:
◆H.264 real-time high compression, support dual stream network transmission
◆Video output:VGA and BNC can be independent local output.VGA display resolution max to 1280*1024
◆Realtime display resolution: D1(4CIF) 704*576 (PAL),D1(4CIF) 704*480(NTSC)
◆Backup: CD-RW (Option: DVD-RW), USB 2.0 and NET backup supported
◆Search& playback Categories:channel, Date/Time, Event
◆RJ-45 Ethernet connector,support Static, Dynamic IP and support TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SMTP
◆Support NAT: network adress transfer, no need router and port setting unless network connecting
◆Support IE,Mobile phone and special client software
◆Support Pelco-P&Pelco-D PTZ control
◆Support the partial graphic of monitoring to be enlarged onmousedrag
◆Multi-language OSD
