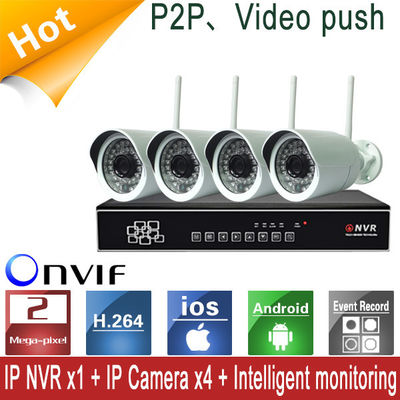

Onvif 4CH 1080P WIFI NVR IP Camera DVR 1920 x 1080 For IOS / Android
Quick Detail:
1. 2.0MP High Resolution : 1920*1080
2. 4mm fixed HD 2.0 megapixel lens
3. Built-in P2P, Video Push Alarm for IOS, Android
4. IR Distance 20M
5. Support 2 *2TB Hard Disk
6. Max 40M WIFI Distance ,stable connection
Description:
1. Onvif standard 2.2 Version
2. Support P2P, Video Push alarm , WDR
3. Support IPHONE and Android
4. Support Firefox, Google Chrome and Safari
5. 1/4" 1.0M OV 9712 CMOS Sensor
6. 36pcs led light , 20M Max IR distance
Applications:
The hd ip security camera can be used in following both outdoor and indoor monitor environment:
Street, Garden, School, Family, Shop, Office, Building, Chain enterprise, Large factory machine room, Remote elder children nurse, Public buildings, Nobody dangerous environment monitor, Financial institution branch monitor, Traffic monitor and etc.
Specifications:
|
|
Model
|
SN-NVK01
|
|
Camera
|
Pixel
|
1.0 Mega Pixel, 1280*720
|
|
Sensor
|
1/4" 1.0MP OVI9712
|
|
Lens
|
4mm
|
|
Electronic shutter
|
1/25s-1/30,000s
|
|
Low Lux
|
Color:0.6Lux@F1.2 B/W:0.08Lux@F1.2
|
|
Auto iris
|
N/A
|
|
ICR
|
Support
|
|
Video parameter
|
Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer
|
|
IR
|
IR Properties
|
Dual filter day / night: automatic switch, linkage switch
|
|
IR Light
|
36pcs IR LEDS, IR Distance: 20M
|
|
Audio-video coding parameters
|
Compression
|
H.264 Main Profile@Level 3.0 / MJPEG optional
|
|
Video bit rate
|
0.1M-6Mbps, customized
|
|
Bit stream type
|
video stream
|
|
Audio compress
|
N/A
|
|
Audio bit rate
|
N/A
|
|
Triple bit streams
|
Support
|
|
|
Video resolution
|
1280*720
|
|
Video flame rate
|
PAL: 1-25 frames/second, NTSC: 1-30 frames/second
|
|
Function
|
PTZ
|
N/A
|
|
Heartbeat mechanism
|
Support
|
|
IP auto pop-out
|
IP auto pop-out at customer end
|
|
Password protection
|
Multi-level protection on password
|
|
Intellectual alarm
|
Mobile detection, video shielding, video loss, network breakdown, abnormality in storage
|
|
Basic functions
|
One-key reset, password protection, watermark technology
|
|
Interface
|
Audio input
|
N/A
|
|
Video output
|
N/A
|
|
Network port
|
1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port
|
|
Serial port
|
N/A
|
|
Alarm input
|
N/A
|
|
Alarm output
|
N/A
|
|
Wireless network
|
WIFI
|
N/A
|
|
Wireless encryption
protocol
|
N/A
|
|
Cell phone monitor
|
Support
|
|
3G network
|
N/A
|
|
others
|
POE
|
Optional
|
|
Power supply
|
DC12V/1A
|
|
Power consumption
|
<6W
|
|
Working temp
|
-10℃ ~ +55 ℃
|
|
Working humidity
|
10 ~ 85%
|
|
Weight
|
1.5Kg
|
Competitive advantages:
Leading and professional manufacturer in CCTV industry
7 years R&D and export experience
High Quality
Competitive and reasonable price
Best pre-sale, sale and after-sale service
24hours technical support
2 year warranty and lifetime maintenance
OEM & ODM
CE,FCC,RoHS,ISO9001-2008 passed
Porduct Detail :
1. IE Preview interface
2. View by NVClient
Pls install NVCL-V5 from CD . User name :admin Password : blank (no)
Search the ip address and add the cameras.
3. WIFI Setup in IE
Before connecting ip camera with NVR, you need to set up wifi ip camera with router firstly.
How to connect IP Camera with NVR ?
1. Search IP Address in NVR Interface.
Make sure that the ip address of IPC and NVR are in the same LAN. Username :admin Password : blank (no)
To add ip cameras to NVR , please go to "Main Menu -- System -- IP CAM CONFIG" . Click "search" and NVR will search
the ip camras in LAN automatically.Click “ADD” to add the device to the channel list below.Click “OK” to Save after adding
devices. You can click "Modify" to change the configuration of the ip cam.
2) Choose "Onvif "
3) Motion Detection
Central Management Software of NVR
Excellent Night vision
