Product Details:
Payment & Shipping Terms:
|
| Weatherproof: | Yes | Material Of Camera: | Magnalium Alloy |
|---|---|---|---|
| Low Power Supply: | 5VDC | IR LED: | 24 Pieces |
| Range Of Night Vision: | 8 -10 M | Image Sensor: | Cmos |
| High Light: | Digital Wireless DVR Security System,Wireless DVR Surveillance System |
||

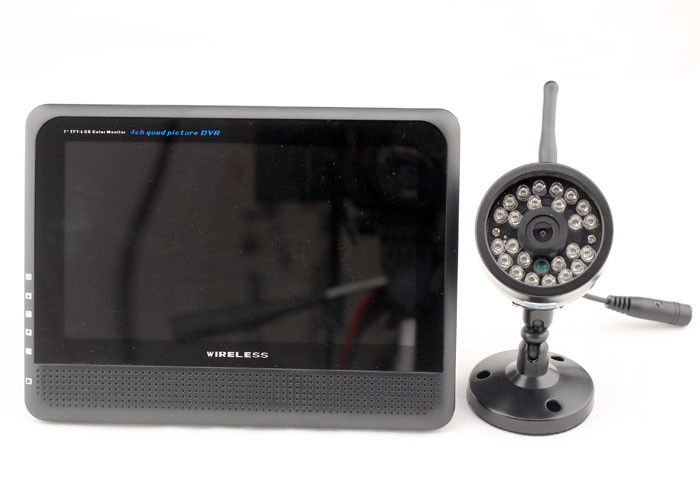

17 dBm 300 meters transmission range wireless DVR security system for all occasions
Specifications:
|
General specifications for Monitor |
|
|
Monitor screen |
TFT - LCD full color display |
|
Screen type |
7' full color |
|
Contrast Ratio |
300:1 |
|
Brightness |
300cd/m2 |
|
Operating frequency |
2.4GHz - 2.485GHz digital modulation |
|
Antenna type |
All-directional 2dB |
|
Receiving sensitivity |
≤85dB |
|
Speaker output |
80dBA |
|
Power Adapter |
DC 5 V / 1000mA |
|
Working temperature |
-10℃~50℃ |
|
Working humidity |
≤85% |
|
Weight |
425g |
|
Dimension |
190mm(L)*140mm(W)*20mm(H) |
|
General specifications for Camera |
|
|
Sensor type |
1/3" CMOS image sensor |
|
Focal length |
4.0mm |
|
Resolution |
800 x 480 pixels |
|
Lens |
OV |
|
Number of Color |
130Mega pixels |
|
IR LED type |
24pcs of IR LED 850nm/8-10m |
|
Transmission Distance |
Minimum100 m - Maximum 300m |
|
Camera material |
Mg-Al alloy |
|
Power Adapter |
DC 5 V / 1000mA |
|
Weight |
188g |
|
Dimension |
57*mm(D)*118mm(H) |
Features / Description:
17 dBm 300 meters transmission range wireless DVR security system for all occasions
(1) This digital wireless DVR security systems is comply with FCC rules,it has high interference resistance and don't interfere other digital devices.
(2) Fast and wide transmission bandwidth up to 3M in the channel of ISM 2.4GHz - 2.485GHz,match with top - rated MCU control,smooth video display is achieved,as must as 30 fps. (frames per sec )
(3) High resolution: 800 (Horizontal) x 480 (Vertical),high brightness: 300cd/m2,high contrast ratio: 300:1 in a 7-inch area,more clear,more brighter,full color,to compose a professional and portable monitor.
(4) 7-inch TFT LCD display with integrated video recorder.
(5) FHSS tech:auto frequency hopping in different channels to avoid data crowd,all data is encrypted,no privacy leak.
(6) Video quality :4 - CH, 10 fps, and 1 - CH, 30 fps.
(7) Outdoor camera with metal shell and built-in micro-phone,300m/990ft transmission range.
(8) Up to 4 Cams/24hrs/7days,all-weather,never stop,overwrite recording/ different recording modes are optional.
(9) Support external micro SD/TF card,Max 32GB.
(10) 10 - 15 meters night - vision range.
(11) Video output function for bigger monitor.
Package includes :
1 x Monitor
4 x Cameras (already paired,factory default)
5 x Adapters
1x Suction cup
1 x User manual
Applications for :
| General purpose for all occasions | |
|
Business |
supermarket,offices,shopping malls,drug store,chain shops, home hotels, restaurants, retail store,pharmacy,post offices |
|
Public Places |
book stores, parks, exhibition halls,convention centers, ticket agencies, |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, |
Competitive Advantages:
(1). Senior engineer from Foxconn company to make the product more competitive on price and quality.
(2). Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
(3). Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
(4). New popular products developed every year to catch up the trend of this field,bring new market share
with clients,can accept OEM/ODM.
(5). Experienced sales persons in foreign trade department with more than 3-5 years exporting experiences,quick response for pre-sale service,sale service and after-sale service.
(6). Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping
shipping.
(7). Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
(8). Quality warranty for 1 year,free exchange for defective product within 1 year.
