DVR Function Under Vehicle Inspection Camera / Portable Explosive Detector V7D
Product Introduction:

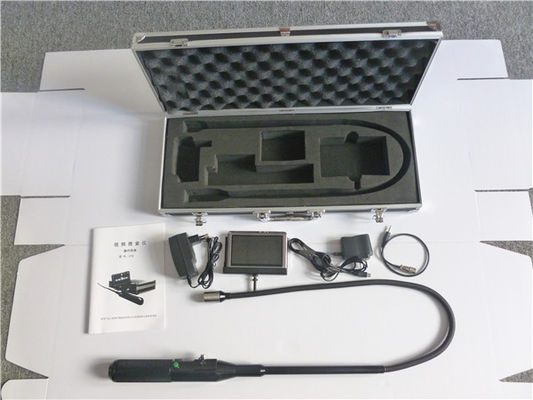

Thank you for purchasing the product! V7D is our latest developed HD Under Vehicle Camera with DVR recording function, it helps security personnel to check clearly on front video display the spaces where are narrow, dark and cannot be reached by naked eyes. It will simplify troublesome inspection work and help save plenty of valuable time, improving security check efficiency. The product uses high-capacity Lithium battery for power supply which lasts 8 hours, avoiding frequent battery replacements. The standard aluminum-alloy carry case is solid enough to prevent equipment from damage by drop, shock or press.
Product Parameters:
Waterproof Camera:
| Dimension | 23mmx50mm |
| Flexible pipe | 940mm |
| Camera casing | Stainless steel 304 |
| Camera lens | Sapphire blue |
| Sensor dimension | 1/4 inch |
| Senor pixel | PAL@720X576/NTSC: 720X480 |
| Lens visible angle | 120 degrees |
| Camera adjustable angle | Arbitrary angle |
| Camera light source | 12 LEDs |
| Waterproof standard: | IP68 |
| Working voltage | DC 12V, working current: 100mA |
| Max length | 1.16m |
| Working temperature | -10℃-50℃ |
| Gross weight | 2.7KG |
LCD Screen
| LCD dimension | 4.3-inch, 16:9 |
| Resolution | 480*320*RGB |
| Power supply | 5V DC(Built-in Li-ion battery) |
| Noise | 485Db |
| USB interface | 2.0(High speed) |
| Output power | 20Hz---20KHz |
Feature and Application:
It is used for inspection the container and other special occasions if they are normal.Also search life after the earthquake.
