Spcification

Qty

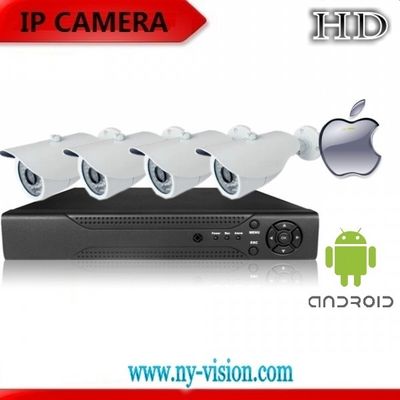

4 ch H.264 Network NVR

1

IR WATERPROOF 1MP IP Camera

4

Screw for CAMERA

4

12V2A power supply for camera

4

12V2.5A power supply for DVR

1

Mouse for NVR

1

CD for NVR

1

User manual for NVR

1

20M CAT CABLE FOR CAMERA

4

System Structure

Embedded RTOS,dual-core 32bit DSP(Hi3518C),pure hard compression,watch dog

image sensor

1/4"OV9712 CMOS,support IR-CUT, support photo resistance signal linkage,CS/M12*0.5 lens;color 0.6Lux at F1.2,black/white: 0.08 Lux at F1.2;

Video compression

H.264,support dual-stream,AVI;0.1M~6Mpbs variable;1~30fps variable;

Image output

main stream: 1280*720; sub-stream:704*576;

audio interface

No

audio compression

No

network interface

1*RJ45 10/100M;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc;

auto iris

NO

photo resistance

one photo resistance interface,support photo resistance signal links to IR-CUT

PTZ

No

alarm input

No

alarm output

No

SD

No

Features

Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage,playback,download,MJPEG capture;united remote client monitoring sofaware,MYEYE;perfect SDK;

ONVIF

Support

mobile monitoring

support multiple mobile monitoring(iPhone,Windows Mobile,BlackBerry,Symbian,Android)

Other functions

DC12V,3W(consumption)

POE

Optional

System

Model

NY-N4002

Main Processor

1 X HI3515A

Operating System

Embedded LINUX

System Resources

Pentaplex function:live,recording,playback,backup & remote access

Operation interface

16-bit true color graphic menu operation interface, support mouse operation

Preview

1/4

Video

Video Standards

PAL 625 line,50 f/s;NTSC 525 line,60 f/s

Video Compression

H.264 High profile

quality supervision

Monitor: D1; VGA: high definition; HDMI: hd

Video Input(IP)

4*720P,960P,1080P/8*D1

Video Recording

720P/960H/D1/HD1/CIF/QCIF

Motion Detection

Zones:396(22*18)detection zones, Multi-level sensitivity can be set

(Local channels only)

Audio

Audio Conpression

G711A

Bidrectional Talk

N/A

Record &

Playback

Recording Mode

Manual>Alarm>Video Detection>Continuous

Playback

1/4channel playback simultaneously

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage &

Backup

Space Occupation

Video: 1080p 80G/day/ch, 720p 26G/day/ch, 960H 24G/day/ch,

D1 16~20G/day/ch;Audio: 691.2M/day/channel

Video saved

Local HDD,network

Backup Mode

Network download/Flash stick/USB/SATA

Interface

Video Input(BNC)

N/A

Video Output

1ch BNC output, 1ch VGA output, 1ch HDMI

Audio Input

N/A

Audio Output

1 channel RCA

Alarm Input

N/A

Relay Output

N/A

Net Interface

RJ-45 10M/100M

PTZ Control

1 RS485

3G/WIFI

Support

USB Interface

2* USB2.0 port for mouse and backup

Hard Disk

1 SATA port(Max 1 x 4T)

Environmental

Power Supply

12V/2A

Dimension

26 x 21 x 4cm

ONVIF

Standard
