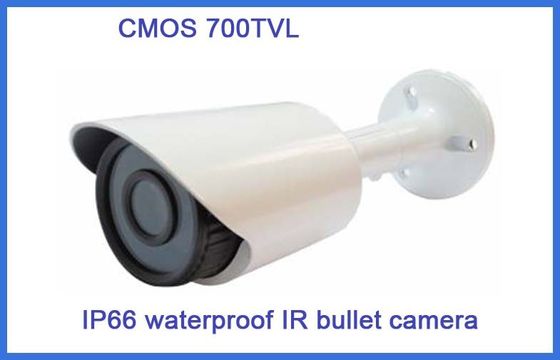

IP66 waterproof IR bullet camera CMOS 700TVL Analog CCTV Camera security outdoor camera

Large Image : IP66 waterproof IR bullet camera CMOS 700TVL Analog CCTV Camera security outdoor camera

Product Details:

Place of Origin:	China
Brand Name:	Zhibosen
Certification:	CC,CE,FC,ROSH
Model Number:	ZBS-9370D1

Contact Now

Detailed Product Description

IP66 waterproof IR bullet camera CMOS 700TVL Analog CCTV Camera security outdoor camera

Quick Detail:

1. Model Number: ZBS-9370D1
2. Brand Name: ZHIBOSEN
3. Type: Analog bullet Camera
4. Lens: 3.6/4/6/8/12mm optional
5. View distance: 30m
6. View angle: 27 °-75 °
7. Lighting: 24 pcs array LED lights
8. Place of Origin: Guangdong China
9. Gross Weight: 0.65kg
10. Package Size: 200x100x85mm

Description:

1. 700TVL CMOS sensor
2. Metal housing(black and white optional)

3. 24 pcs array IR led lamp, 30 meters IR distance

4. Lens 4/6/8/12/16mm optional

5. Size: 200x100x85mm

6. 0. 65KG weight

7. Day and night, infrared-sensitive
8. Support photoresistor signal linkage
9. Support WEB configure and OSD
10. Support motion detection and alarm linkage end storage IO

Applications:

Applicable to financial services, supermarkets, telecommunications, government, schools, airports, factories, hotels and other places HD quality requirements

Specifications :

Name	700 TVL COMS camera
Sensor Type	1/4 " Progressive Scan CMOS
Function	Electronic zoom function
Infrared parameters	IR distance: 30 meters
Illumination	Color: 0.1 lux, black and white: 0.5 lux, 0 Lux with IR
3D noise reduction	Support
Shutter	1/50 (1/60) seconds to 1/100, 000 sec
Shot	Standard 3.6mm fixed iris lens (4/6/8/12/16mm optional)
Day & Night Mode	IR CUT dual filter switch
Video compression standards	H.264
Video compression technology	Dual stream compression technology, including local watch streaming, remote viewing stream, stream watch phone
Compression output rate	32Kbps ~ 2Mbps
Resolution	Main stream: 700TVL (30fps), full-time; Sub stream: D1, CIF full real-time;
Image parameter settings	Brightness, contrast, hue, saturation, adjust image quality level
Interface Protocol	ONVIF protocol support
Intelligent Alarm	Motion Detection
Regional Shield	Support
Audio Interface	Can match 1 input, 1 output (RCA)
Working temperature and humidity	-10 degree ~ 60 degree 90% RH
Power Supply	DC 12V/2.0A
Power Consumption	<12W
Protection class	No
Dimensions (mm)	200 (L) × 100 (W) × 85 (D) mm
Camera Weight	0.65Kg
