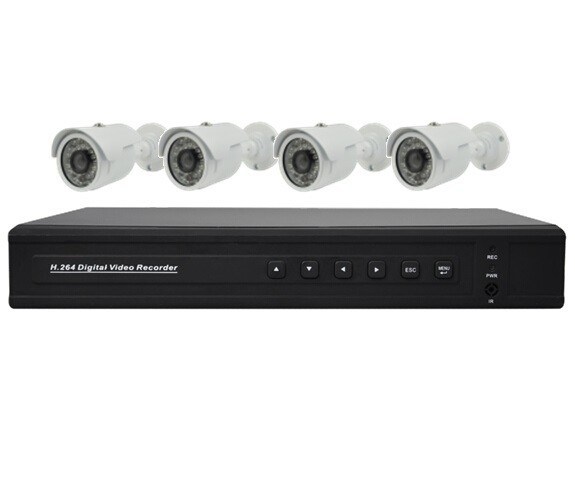

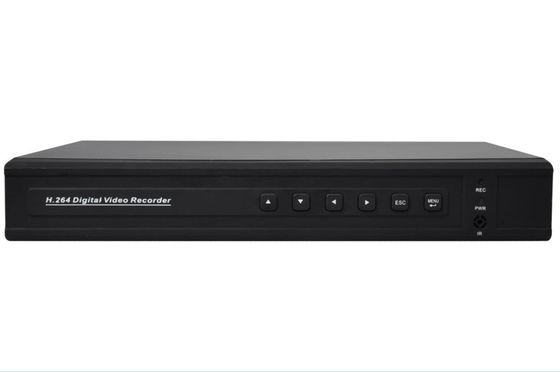

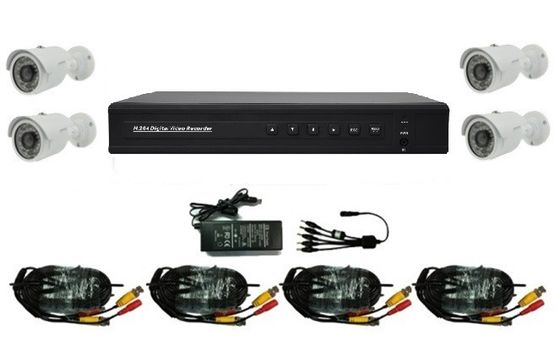

Video Surveillance Camera 4CH Standalone DVR and IR CCTV Bullet Cameras

System

Main processor

Technical grade embedded microprocessor HI 3515C

Operating system

Embedded LINUX operating system

System resource

Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.

Interface

Operation interface

16bit real color GUI interface support mouse operation

Display screen

1/4 screen (take analog channel as an example, other is based on the selected channel mode)

Video

Video standard

PAL(625 lines, 50fps); NTSC(525 lines, 60fps)

Image encode

H.264(High Profile)

Monitor quality

Monitor: D1: VGA, HDMI: High definition(support 1280*720, 1440*900, 1280*1024, 1024*768, 800*600)

Playback quality

D1/HD1/CIF

Encode capability

4D1 real-time

Decode capability

2D1 real-time+2D1 NO real-time

Motion detection

Each channel can set 192(16*12)detection area; can set multi-level of

flexibility (for local analog channel only)

Audio

Audio compression

G711A

Record and

playback

Record mode

manual>alarm>motion detection>timing

Local playback

1-4CH playback synchronously (take local analog input for example, other is depended on the selected channel mode)

Video search

Time, date, event, channel search

Storage and

back up

Space occupation

Video: CIF 4~5G/day*channel, D1 16~20G/day*channel;

Audio: 691.2M/day*channel

Video storage

Local HDD, Network

Back up mode

Network backup, USB portable HDD, USB imprint, SATA imprint

Interface

Video input

4CH CVBS/BNC(1.0Vp-p,75Ω)

Video output

1CH CVBS/BNC(1.0Vp-p,75Ω), 1CH VGA, 1CH HDMI

Loop output

optional

Audio input

1CH RCA(200-2800mV,30KΩ), can be extended to 4CH

Audio output

1CH RCA(200-3000mV,5KΩ)

Alarm input

N/A (can be extended to 4CH)

Alarm output

N/A (can be extended to 1CH)

Network port

RJ45 10M/100M self-adaptive Ethernet port

PTZ control

1 RS485; support multi kinds of PTZ protocol

USB port

2*USB2.0

HDD port

1 SATA ports(each max to 4TB)

Wireless port

N/A

Other

Power

12V/2A

Consumption

<15W(not including HDD)

Temperature

0℃-＋55℃

Humidity

10%－90%

Atmosphere pressure

86kpa－106kpa

Dimension

L300*W235*H45MM

Weight

1KG
