| High Light: | Megapixel IP Cameras,IP Security Cameras,IP Cameras |
||
|---|---|---|---|

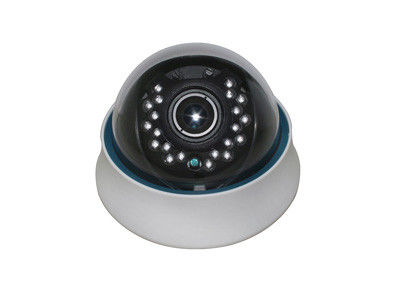

1.3 Megapixel IP Cameras DR-IPTI705R
| Image Sensor | 1.3 megapixel CMOS sensor 0130 |
| Processor Model | TI365 |
| Min. Illumination | Color:0.02Lux @(F1.2,AGC ON) |
| B / W:0.002Lux @(F1.2,AGC ON) | |
| Electronic Shutter | 1/50(1/60)s - 1/100,000 s |
| Lens | 6mm @ F1.2 (3.6mm, 6mm, 8mm,12mm optional) |
| Lens Mount | CS |
| Auto Iris | DC/VIDEO/MANUAL |
| Adjust Angle | Level: 0°~355°; Vertical: 0°~ 80°; Rotation: 0°~140° |
| Day/Night | IR-CUT |
| IR Distance | 15M |
| Synchronization way | internal synchronization |
| Video Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | > 48dB |
| Compression | |
| Video Compression | H.264 Main Profile, JPEG capture |
| Video Bite Rate | 32 Kbps~4Mbps |
| Audio Compression | G.711A |
| Audio Input | Support(customize) |
| Image | |
| Max. Image Resolution | 1280*960 |
| Frame Rate | 50Hz:25fps (1280*960); 60Hz:30fps (1280*960) |
| Image Setting | Saturation, Brightness, Contrast adjustable through Client software or web server |
| Network Function | |
| Storage | Support network storage |
| Intelligent Alarm | Motion detect, Video loss, Network disconnection, IP address conflict, Storage full, Storage error |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP (HTTPS, RTP/RTSP, SIP, 802.1x, IPv6 Optional) |
| Basic | Anti-flicker, Dual stream, Heartbeat, Password protection |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet interface and 1 RS485 interface |
| Video Output | 1Vp-p Composite Output (75Ω/BNC) |
| General | |
| Operating Condition | -10℃ ~ 60℃, Humidity 90% or less(non-condensing) |
| SD Card Recorder | Support (customize) |
| Power Supply | DC12V±10% |
| POE | Support (customize) |
