maintenance free wireless car backup camera wide viewing angle small HD monitor
Specifications:
|

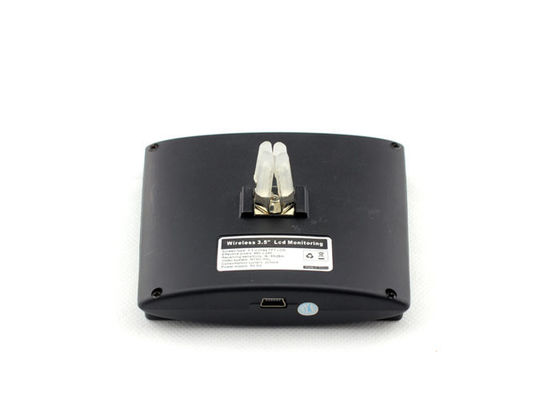

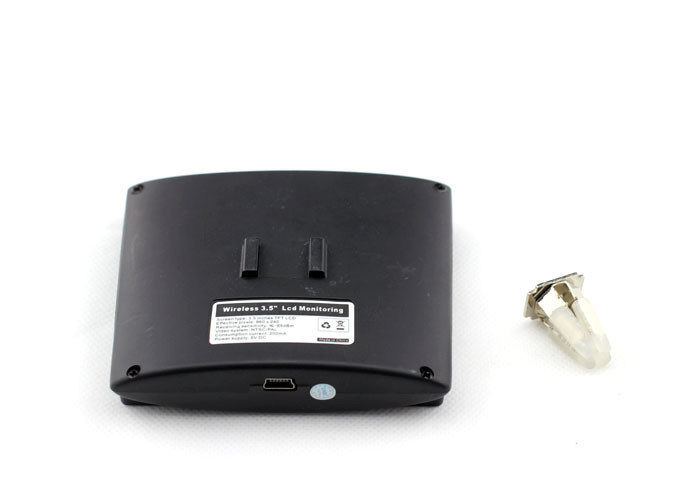

Monitor information |
Screen size / type |
3.5” LCD RGB color |
|
Resolution |
H 320 V240 |
|
|
Receiving sensitivity |
≤85dB |
|
|
Dimension |
90mm(L) x 73mm(W) x 18mm(H) |
|
|
Weight |
Net weight 88g |
|
|
Camera information |
Lens |
OV |
| Infrared LED / night vision | 7pcs of 850nm / 5meters | |
|
Viewing angle |
110° |
|
|
Total pixels |
130M |
|
|
Cable length |
1.2m |
|
|
Power input |
DC 12/24 Volt from vehicle |
|
|
Transmitter information |
Transmitting Frequency |
2.4G |
|
Transmitting distance |
Minimum 100m |
|
|
Working temp. |
- 10 ℃ - 60 ℃ |
Description:
maintenance free wireless car backup camera wide viewing angle small HD monitor
If you want a cost effective wireless car back - up camera for your cars,we recommend you to choose this model with all the functions you need,this monitor will not occupy much space in the front of your car.and no worry about water that will get in the camera,durable and reliable products,bring you special reversing experience.
* Applicable for 12 Volt power supply from cars and 24 Volt from vehicles.
* Few steps of installation.without damage to your cars.
* Exterior waterproof car rear view camera with OV lens, maintenance - free, 100% waterproof ,no worry to drive and in the rain.
* CMOS sensor adopted,110° wide angle, recommended for bad car rear view effect or large cars without back camera.
* Fast response within 1 - 1.5 seconds to show video when shifting in reverse, with 4 color of reference line showed in the monitor, so easy to park your car!
Brief Installation guide :
* Adjust the camera to proper position,mount it near to the license plate or other suitable place.
* Plug & connect the camera to the transmitter,connect power cable ( red and black ) to power system of cars.
* Connect car charger to the display and car cigar lighter.
What 's in the box :
1 x Monitor
1 x Camera
1 x Transmitter
1 x Car charger(for monitor)
1 x Bracket
1 x User manual
Applications:
Suitable for all vehicles / cars.
Toubleshooting:
|
Problem |
Situation |
Solution |
|
Monitor without |
The lens of the camera may be |
Clean the lens. |
|
The camera is mounted incorrectly |
Check camera’s position and alignment. |
|
|
No power to the monitor or camera |
Ensure power on and connect the wires |
|
|
Monitor powered off |
Check the car charge if there is power output |
|
|
Camera is angled incorrectly |
Adjust camera angle |
|
|
Screen settings are incorrect |
Adjust camera angle |
|
|
Monitor is angled incorrectly |
Adjust monitor angle using adjustment knobs. |
Competitive Advantage:
1. Senior engineer from Foxconn company to make the product more competitive on price and quality.
2. Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
3. Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
4. Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
5. New popular products developed every year to catch up the trend of this field,bring new market share with clients,can accept OEM/ODM.
6. Experienced sales persons in foreign trade department with more than 3-5 years exporting
experiences,quick response for pre-sale service,sale service and after-sale service
7. Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping shipping.
8. Quality for 1 year,free exchange for defective product within 1 year.
