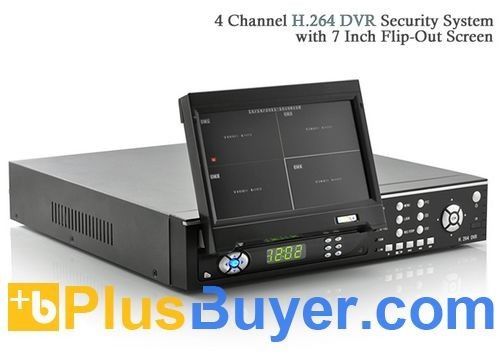

4 Channel DVR Security System (7 Inch FlipOut Screen, H.264, Remote)

•
  Video Specifications
• Video System: PAL, NTSC
• Video Compression: h.264
• Video Standards: PAL (360x288, 100 fps), NTSC (360x240, 120 fps)
• Number of Camera Inputs: up to 4
• Video Display: Single or 4 Cameras
• Recording Mode: Manual/Remote/Motion Detection/Timing
• Input:
  - Video Input: 4 x BNC Connector, 1.0V p-p/75 Ohm
  - Audio Input: 4 x RCA, 200-3000mV, 5Kohm
• Output:
  - Video: 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms
  - Video VGA
  - Audio: 1 Channel RCA, 200-3000mV, 5Kohm
•
  Network Specifications

• Ethernet: Wired RJ-45 (10M/100M)
• Storage Type: 3.5 inch SATA HDD, Can supported 2TB HDD (NOT included)
• Network Protocol: TCP/IP, UDP, HTTP, NTP, DHCP, DDNS
• Network Function: IE Remote Monitor, Control, Setup, Playback
• CMS: YES (Maximum 16 Different I Addresses)
•
  General Specifications

• Color: Black
• Remote Control: YES
• Mouse Control: YES
• Screen Size: 7 Inch
• OS Language: English, French, Spanish, Portuguese, Italian, Chinese, Turkish, Persian, Russian, Polish
• Dimensions: L: 325 x W: 345 x H: 60 mm
• Certification: CE, FCC, RoHS

Manufacturer Notes

• Comes with full featured remote controller
• Comes with crystal clear 7 inch flip-out screen for viewing videos
• You can easily change the BNC connection to an RCA AV type with a simple BNC to RCA coupler adapter
• H.264 compression to maximize recorded video quality
• If you are looking for DVR sets complete with 4 x Cameras and 500 GB HDD, please check out I39, I40, I41 or I42
• If you are looking for 8 Channel, 16 Channel dual stream DVR, please check out TSH-E176, GSH-I145
• User and Password for the software can be found in the user manual

Package Details

• 4 Channel DVR with 7 inch Flip-out Screen
• Power Cable
• Remote Controller
• User Manual
• Software CD
• Screws
• USB Mouse

FAQ - Frequently Asked Questions

• Can I use less than 4 cameras with this DVR?
  Totally. You can connect 1, 2, 3 or 4 cameras with this DVR. If you have less than 4 cameras, the quadrant split screen will only show images of your cameras. The remaining part will show blank.
