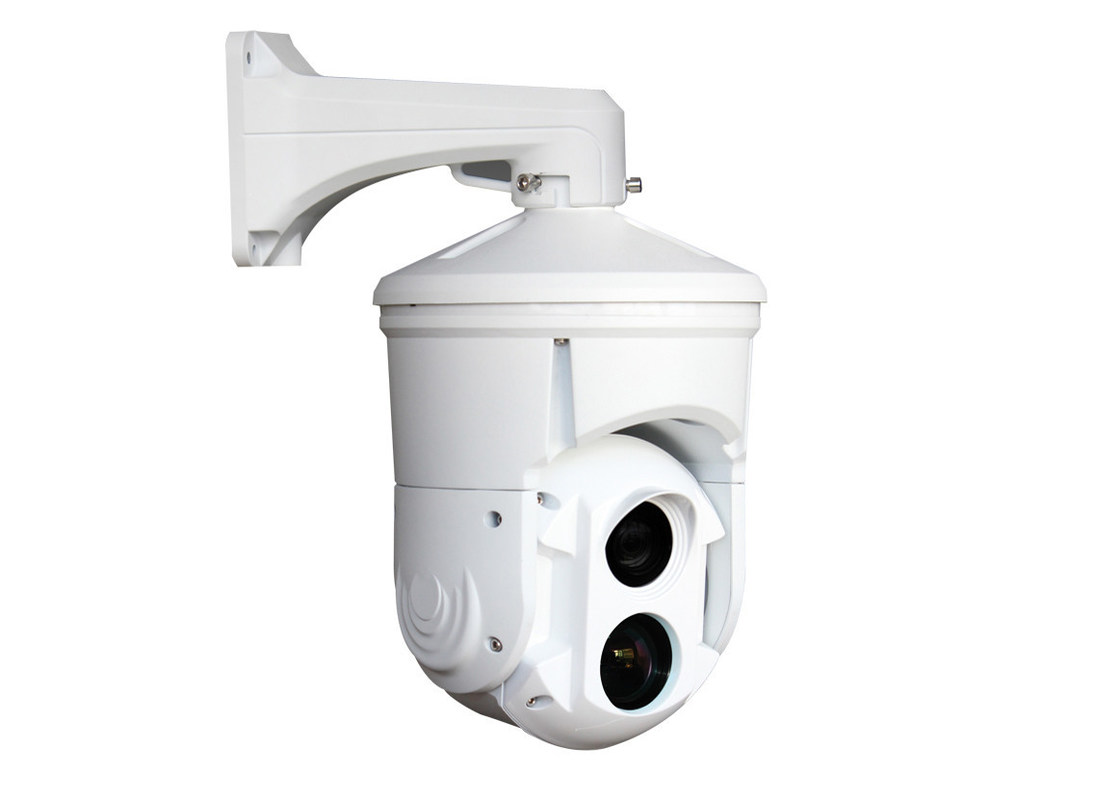

Double Visual IR Thermal Imaging Camera , CCTV Security Systems

Items

DLS-L18DM

DLS-L37DM

Double visual imaging system

Thermal Camera

Detector type

Uncooled FPA microbolometer

Spectral range

8~14um

Resolution

384×288

Pixel size

25um

Focal length

18mm

37mm

Field of view

30.6°*22.9°

14.8°*11.1°

Lens

Fixed, Athermalized

Video out

PAL mode

Frame rate

50Hz

Polarity

White hot/Black hot

Communication

RS485,Support PELCO-D/PELCO-P/DALI

Visual Camera

CCD
Camera

Resolution

PAL:752(H)×582(V) / NTSC:768(H)×494(V)

Imaging device

1/4" SONY EXView HAD CC

Lens

3.4 mm to 122.4 mm/ F1.6 to F4.5,36X

Horizontal resolution

Color:550TV lines,B/W:570TV lines

Pan&Tilt

Angle info feedback

Support(PELCO-D protocol)

Horizontal angle of rotation

0～360° continuous rotation

Vertical angle of rotation

-3°~93°

Horizontal rotation speed

0.05° -150°/s

Vertical rotation speed

0.05° ~100°/s

Preset

128

Material

Camera body in aluminium alloy, housing in aluminium alloy

Physical characteristics

Dimension

Φ245(mm)×375(mm)

Encapsulation

IP66

Weight

7kg

Operation temp

-40°C～55°C

Storage temp

-40°C～70°C

Interface

Video output

PAL; 2 channels

Communication

RS485

Protocol

PELCO-D/P

Baud rate

2400/4800/9600 bps

Power Supply

AC24V±4V

Power Consumption

50W
