| DVR input: | 8 Channel | Resolution: | 800 TVL |
|---|---|---|---|
| IR CUT: | YES | P2P: | Support |
| Application: | Home, Shop, Small office, Parking lot | Cable: | 4x 60ft all in one extention cable |
| إبراز: | cctv home security kits,surveillance dvr kits,surveillance dvr kits |
||
Vandal Proof 24 LEDs IR CCTV Security Camera 8CH DVR Kit / Security Camera Kits
DVR Features:
l H.264 real-time high compression, support dual stream network transmission
l Video output:VGA, BNC and HDMI
l display resolution: D1(4CIF) 704*576 (PAL),D1(4CIF) 704*480(NTSC)
l 1ch audio in,1ch audio output
l Support Motion Detection and email, will be sent to the assigned email address automatically
l Support IE,Mobile phone and special client software
l Support Pelco-P&Pelco-D PTZ control
l Multi-language OSD
Camera Features

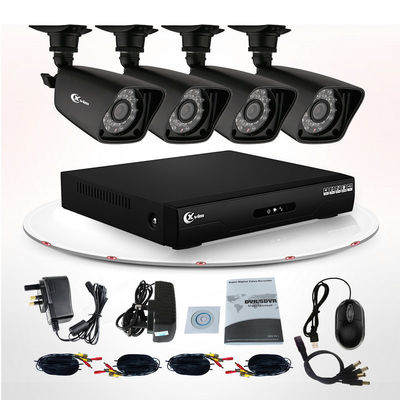

What’s inside:
l 1 x 4CH Full D1 H.264 Network Digital Video Recorder.
l 4 x Colour CMOS 800TVL IR LEDs Weatherproof Camera
l 4 x 60ft Video + Power All-in-one Cable for Security Camera
l 1 x 12V Power Supply for Cameras
l 1 x 1-4 Splitter Cable for Cameras
l 1 x 12V Power Supply for DVR
l 1 x Mouse
l 1 x User's Manual
Specifications:
|
DVR Spec |
|
|
Video Compression |
H.264 |
|
Video System |
NTSC / PAL |
|
Operation System |
Linux Based |
|

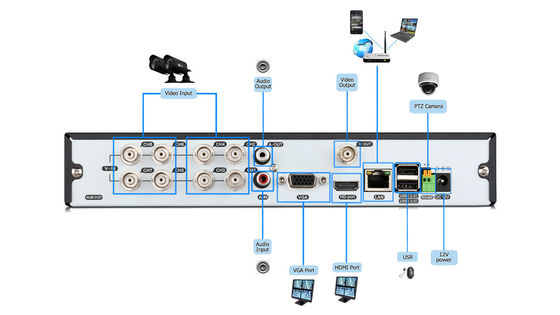

Video Input / Output |
BNC 8-Channel Input / BNC 1-Channel Output |
|
Other Video Output |
HDMI/VGA/BNC |
|
Audio Input / Output |
RCA 1-Channel Input / RCA 1-Channel Output |
|
Recording Frame Rate |
NTSC: 240 fps 2D1+6CIF@30 fps/ PAL: 200 fps 2D1+6CIF@25 fps |
|
Record Resolution |
Selectable:2CH: D1 (704 x 480) ; 6CH:CIF (352 x 240) |
|
Record Mode |
Continuous / Time Schedule / Motion Detection |
|
Recording Pack Time |
15/30/45/60mins Selectable |
|
Simplex / Duplex /Triplex / Pentaplex |
Pentaplex |
|
Network |
RJ45, 10M/100M |
|
Net Protocol |
TCP/IP, PPPoE, DHCP ,DDNS and Mobile Device |
|
Remote Access |
LAN or Internet Browsing |
|
PTZ Control |
RS-485 |
|
HDD Interface |
SATA, Support up to 2TB |
|
Sync Playback |
8-CH |
|
Playback Mode |
Normal Play /Fast Forward /Fast Rewind/ Frame by Frame |
|
USB Interface |
USB Backup / USB 2.0 |
|
Remote Control |
IR Remote Control |
|
Power Supply |
12V/2A DC |
|
Power Consumption |
IR on Max 1000mA |
|
Dimension |
260mm (W) x 230mm (D) x 50mm (H) |
|
Language |
20 languages |
|

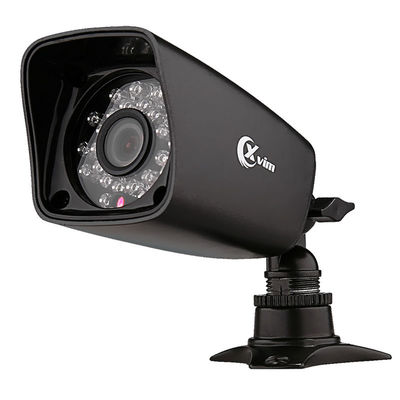

Camera Spec |
|
|
Image Sensor |
1/4" Color CMOS |
|
TV System |
NTSC |
|
Horizontal Resolution |
800 TV-Lines |
|
Lens |
3.6mm |
|
Number of IR LEDs |
24 LEDs |
|
Infrared Illumination (Night Vision) |
up to 50ft(10~15m) |
|
Minimum Illumination |
0 Lux (IR LED On) |
|
S/N Ratio |
≥ 48dB |
|
Video Output |
1.0Vp-p, 75ohms |
|
Operating Temperature |
14°F~122°F / -10°C ~50°C |
|
Weatherproof |
Yes |
|
Power |
12V DC |
|
Power Consumption |
IR on Max 150mA |
|
Material |
Alloy Shell |
