| ONVIF: | Support | Video Input: | 4 CH 720P IP Camera |
|---|---|---|---|
| Video Format: | PAL/NTSC | P2P: | Support |
| Resolution: | 720P | Mult-language: | Support |
| إبراز: | cctv digital video recorder,digital video camera recorder,digital video camera recorder |
||

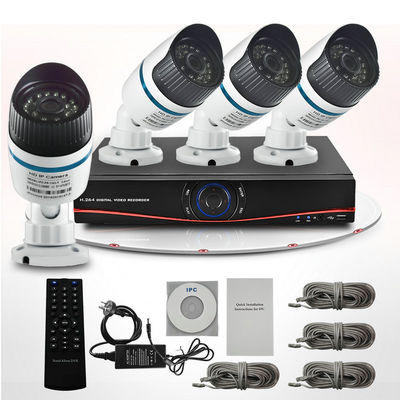

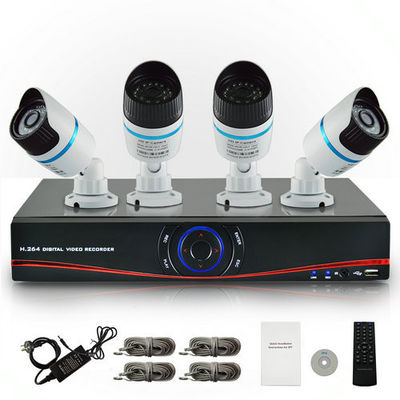

Portable 4CH NVR Network Video Recorder DVR h264 with 720P IP Camera Support ONVIF
NVR Specifications:
|
Model |
D7304 |
|
Main processor |
Industrial grade embedded micro controller chip |
|
Operating system |
Embedded LINUX operating system |
|
System resource |
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
|
Operation interface |
16 bit real color GUI interface support mouse operation |
|
Multilingual Language |
YES, supporting 14 kinds of languages |
|
Display screen |
1/4 screen |
|
Image encode |
H.264(Main Profile) |
|
Monitor quality |
Monitor:D1; VGA&HDMI( 1920*1080；1280*1024；1280*720；1024*768) |
|
Playback quality |
/720P |
|
Encode capability |
4ch720P |
|
Decode capability |
720P@25fps |
|
Audio compression |
G.711A |
|
Record mode |
Manual, alarm, motion detection, timing |
|
Snapshot |
YES |
|
Local playback |
1ch 720P@25fps |
|
Video search |
Time, date, event, channel search |
|
Space Usage |
Video 720P:10G~42G/day*channel,audio 691.2M/day*channel |
|
Video storage |
Local Hard Disk, Network |
|
Back up mode |
Network backup, USB portable HDD, USB (FAT32 form) |
|
Video input |
4ch IP Camera |
|
Video output |
1ch BNC(1.0Vp-p,75Ω), 1ch VGA , 1ch HDMI |
|
Audio output |
1ch RCA (200-3000mV,5KΩ) |
|
Network port |
1*RJ45 10/100 Base-T self-adaptive Ethernet port |
|
PTZ control |
1*RS485 port, Support more than 5 kinds protocols. |
|
USB port |
2* USB 2.0 port |
|
HDD port |
Accommodates 1 SATA HDD (1 HDD capacity up to 2TB) |
|
User level |
Admin |
|
User right |
Users can set different permissions |
|
Password protection |
YES |
|
Remote Independent Operation |
YES |
|
Download records |
YES |
|
Remote Event Trigger Recording |
YES |
|
CMS |
CMS Software for multiple DVR (up to 255 Device) |
|
Browser |
Internetie32-bit,360,Sogou,Google, Mozilla Firefox |
|
Live Audio |
YES |
|
On-line user |
Max.10 |
|
Mobile Surveillance |
YES (Supporting iPad, iPhone,Android) |
|
Network Protocol |
DHCP/ADSL,PPPOE, SMTP,TCP / IP,DDNS,Wireless dial,WIFI,P2P |
|
Motion detection |
FTP/YES |
|
Event Notification |
|
|
Pre-alarm Recording |
YES |
|
Video loss |
Video loss notification |
|
IR remote controller |
Remotely control DVR and PTZ cameras via IR transmitter |
|
Remote control |
YES |
|
Tour |
YES |
|
Power Source (±10%) |
DC 12V /2A |
|
Power Consumption (±10%) |
<10W(without HDD) |
|
Operating Temperature |
0℃ ~ +55℃ |
IPC Specifications:
|
Model |
100W |
|
Sensor |
1/4″COMS |
|
Resolution |
1280×720 |
|
Pixel |
100M |
|
Video compression |
H.264 |
|
Frame Rate |
25fps |
|
Bitrate |
128Kbps～8Mbps |
|
Synchronization |
inter-sync |
|
SNR |
39dB |
|
Minimum illumination |
0Lux(IR ON) |
|
Lens |
3.6mm |
|
Exposure control |
Auto |
|
Gain control |
Auto |
|
White balance |
Auto |
|
Day/night |
IR-CUT |
|
Operation temperature |
-20℃～+55℃ |
|
Operation humidity |
10%～90% |
FEATURES:
l Remote control easily & conveniently without any complicated setting.
l Compression algorithm upgraded to H.264 High Profile, more advanced video compression technique makes the code stream lowered at least 30%.
l Support main stream and extra steam encode synchronously. Main stream is for local storage, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
l Support all kinds of mobile monitor (iPhone, Andriod).
l Supporting HDMI / VGA / TV simultaneous video output.
l Similarly WINDOWS operating interface design, powerful right-click menus, to let you experience easily and conveniently.
l Powerful net service(support DHCP/ADSL, PPPOE,DDNS, NTP, UDP, TCP/IP, etc), complete enclosure(WEB, CMS), to easily achieve interconnection.
l For web browsers, compatible with 32-bit Internet Explorer, 360,and Sogou,Google, Mozilla Firefox,etc.
l Supporting DDNS Service : DynDNS, NO-IP, Myq-See, Oray, 3322,and so on.
l Support alarm triggered recording will send alerts matter to the designated email. Support pre-alarm recording (before 10 sec), not lose any suspicious screen.
l Channel switching is independent from the local site, allowing users to have private image monitoring remotely.
l Allows live display, record, playback, backup, network and mobile surveillance at the same time.
l Two USB2.0, supporting USB mouse, backup, record,and upgrade ,etc .
l 14 kinds of language to break the national boundaries
l System auto recovery after power failure
