Features
With XM cloud service, easy to achieve a variety of network penetrations ,one step to remote monitoring, getting rid of various complicated network settings, easy and simple to operate.
H.264 High Profile compression algorithm，30% decrease of stream due to advanced space-time filtering technology.
Support 4ch D1, 2ch D1 +6ch CIF，16ch CIF full real-time encoding，multi-channel full real-time playback and decoding simultaneously.
Main stream and Sub-stream encoding. Main stream for local storage, ensure image quality;Sub-stream for real-time network transmission, easy to solve bandwidth bottleneck problem.
Support various mobile monitoringï iPhoneï Œ Windows Mobile ŒBlackBerry ŒSymbian，Android .
Support TVã€VGA and HDMI output simultaneously Œ VGA HDMI support 1024*768 HD output，leading the trend in HD resolution output technology
Similar to Windows operating style, easy to get started with powerful mouse right-click function.
Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, EMAIL,IP searches etc.) and perfect support (WEB, Client, SDK), easy to achieve interoperability.
Support IE Chrome Firefox Safari browsers.
3322 (Greek network), dyndns, oray (peanut shells), myq-see and other Domain Name Services are also provided.
Support 2 USB2.0 ports Œto realise USB mouse backup burn upgrade and other operations steadily.
Support more than 20 languages English (Finnish, French, German, Greek, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, Chinese, Traditional Chinese, Turkish, etc.) no nation boundaries.
Display flexibly, free to replace boot interface.
Specification
| System | Main processor | Hi3520D |
| Video | video compression | H.264(High Profile)； |
| Encode | 8*960H@12fps | |
| Decode | 4*960H@12fps | |
| Multi-mode input | Pure Analog:4*AHD-L；4*D1； | |
| Mixed:2*D1(analog) +1*720P(network)+1* AHD-L (network)； | ||
| Pure Network:1*1080P；1*720P+3*D1 | ||
| Audio | Audio compression | G.711A |
| Intercom | support | |
| Recording and Playback | Record mode | Manual>alarm>motion detection>timing |
| Playback Channels | 4 (pure local input mode) | |
| Storage and backup | Space occupation | 960H:12~20G/ day*channel |
| 720P:20G~30G/ day*channel | ||
| audio:691.2M/ day*channel | ||
| Backup mode | Network backup,USB HDD, USB writer,SATA writer | |
| Interface | Video input | 8 BNC |
| Video output | 1ch VGA,1ch HDMI,1ch TV | |
| Audio input | 4ch RCA | |
| Audio output | 1ch RCA | |
| Alarm input | ||
| Alarm output | ||
| Network interface | RJ45 10M/100M Adaptive Ethernet port | |
| PTZ control | RS485； support multiple PTZ protocols | |
| USB | 2 USB ports | |
| Hard disk | 1 SATA(Each maximum support 4T ) | |
| Wireless | 3G,WIFI(expand via USB) | |
| Other | Power | 12V/2A |
| dimension | 255mm(length)* 225mm(width)* 45mm(height) |
Package Include:
8CH AHD DVR *1

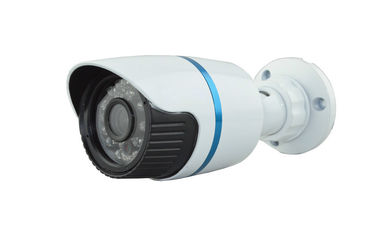

CMOS 1000TVL Camera*8
18M CCTV Cable * 8
12V/5A Power Supply *2
Remote Control * 1
CD *1
User Manual *1
