Product Details:
Payment & Shipping Terms:
|
| Frequency: | 2.4GHz - 2.485GHz | Wireless Type: | Analogue |
|---|---|---|---|
| Modulation Type: | FM | Material: | Magnalium Alloy |
| Color: | While Black Silver | Transmission Distance: | Min.100 Meters |
| High Light: | 4 Channel Wireless security system,Wireless 4 Camera Security System |
||

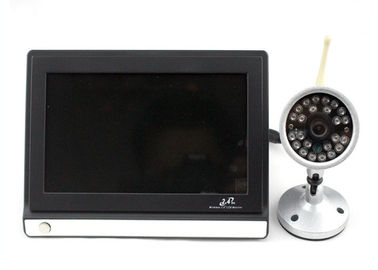

7-inch TFT - LCD RGB color Wireless Camera Security Systems for baby monitoring
Specifications:
|
Features of receiver(monitor) |
Screen size |
7-inch full color TFT LCD |
|
|
Transmission frequency |
2.4GHz-2.485GHz analogue RF modulation |
|
|
Antenna type |
Omni-directional |
|
|
Antenna interface |
SMA |
|
|
Receiving sensitivity |
≤85dB |
|
|
Modulation mode |
FM |
|
|
Power Adapter |
DC 5V/ 1 A |
|
|
Power consumption |
＜5 W |
|
|
Operation temperature |
-10℃~50℃ |
|
|
Operation humidity |
≤85% |
|
|
Dimension |
198mm(L)*100mm(W)*43mm(H) |
|
|
Weight |
425g |
|
Features of transmitter (camera) |
Image Sensor |
1/3" omni-directional vision CMOS |
|
|
Focal length |
3.6mm |
|
|
Camera Lens |
Imported OV lens from USA |
|
|
Number of Color |
130M pixels |
|
|
Horizontal Definition |
420 TV line |
|
|
Transmission Distance |
Min.100m |
|
|
IR used for night vision |
Quality IR LED 850 |
|
|
Night-vision distance |
8-10 meters |
|
|
Camera shell |
Magnalium alloy |
|
|
Power Adapter |
DC 5V/ 1 A |
|
|
Dimension |
57*mm(D)*118mm(H) |
|
|
Weight |
188g |
|
|
|
|
Description:
7-inch TFT - LCD RGB color Wireless Camera Security Systems for baby monitoring
Feature details:
1. Screen adopts high resolution 7" full color TFT LCD display.
2. Support up to 4-CH wireless Camera Security systems,real-time monitor at an angle of 80 degrees,with a 30 fps video display.
3. Support up to 4 pcs of cameras at the same time,monitor type is of rolling picture by pressing the button on the panel, from No.1 - No.4 or press the same button again for 2s to automatically switch every camera.remote control is matched to fulfill the functions.
4. Easy connection method of PNP.
5. Transmission distance is Min.100 meters (line of sight).
6. All direction bracket,built-in microphone in the camera to help you see the video,hear the sound from the monitor.
7. Metal Mg-Al alloy shells with weatherproof design for the camera.
8. Adopts 24 pieces of quality IR LED 850 used,Effective night vision range: 8-10 meters.
9. A/V output interface,with A/V line to connect to a bigger monitor.
10. When there is “No Signal” shown on the monitor,that means out of range,please get closer.
11. All power adapters support all-day working time for 7/24.
Packaging type:
1 piece packed in individual inner box,10 pieces in one standard export carton.
Package contents:
1 x Monitor
2 x Cameras (or 4)
1 x A/V line
1 x Antenna
1 x Remote control
3 x Adapters
1 x User manual
Applications:
For home,villa,shop,store,for monitoring baby,or don't want to connect with cable,to quick set up,applicable for small area of surveillance,have to take the monitor around,for only certain period time of real-time monitoring at site,etc. it is just the wireless camera security systems for you.
Competitive Advantages:
1. Senior engineer from Foxconn company to make the product more competitive on price and quality.
2. Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
3. Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
4. New popular products developed every year to catch up the trend of this field,bring new market share
with clients,can accept OEM/ODM.
5. Experienced sales persons in foreign trade department with more than 3-5 years exporting experiences,quick response for pre-sale service,sale service and after-sale service.
6. Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping
shipping.
7. Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
8. Quality for 1 year,free exchange for defective product within 1 year.
