| Surveillance Type: | Portable Wireless | Package: | 4 Cameras With 1 Monitor |
|---|---|---|---|
| Color: | Black | Power Supply: | Adapter Only |
| High Light: | Wireless Surveillance security Systems,Wireless 4 Camera Security System |
||
indoor and outdoor use wireless camera security Systems sets surveillance device
Specifications:
Main features ( monitor ) | Monitor screen | TFT - LCD |
| Screen type | 7' full color |
| Operating frequency | 2.4GHz - 2.485GHz FM modulation |
| Antenna type | SMA All-directional 2dB |
| Receiving sensitivity | ≤85dB |
| Speaker output | 80dBA |
| Power Adapter | DC 5 V / 1000mA |
| Working temperature | -10℃~50℃ |
| Working humidity | ≤85% |
| Gross Weight | 425g |
| Dimension | 198mm(L)*100mm(W)*43mm(H) |
Main features ( camera ) | Sensor type | 1/3" CMOS image sensor |
| Focal length | 3.6mm |
| Resolution | H:480 V:234 |
| Camera Lens | OV lens |
| Number of Color | 130Mega pixels |
| IR LED type | 24pcs of IR LED 850nm/8-10m |
| Transmission Distance | Min.100 meters,line of sight |
| Camera material | Mg-Al alloy |
| Power Adapter | DC 5 V / 1000mA |
| Gross Weight | 120g |
| Dimension | 57*mm(D)*118mm(H) |
Description:
indoor and outdoor use wireless camera security Systems sets surveillance device
Features:
1. This wireless security system is adopted ISM frequency 2400 - 2,485MHz,with a analogue FM modulation method,it meets user's demands of quick setup and simple operation.
2. Upgrade screen size from 3.5 inches to 4.3 inches,now in a bigger size of 7 inches,so you can check the surveillant area more convenient,with high resolution in this field,480 x 234 pixels,bring you more clear image display.
3. The systems supports 4-channel,4 cameras working at the same time while you connect all of the camera just to the power adapter,you can see the video from the monitor immediately.
4. Main IC in the monitor is imported from Taiwan,and some parts of the cameras from USA and Korean,in this case,it assure the video display speed up to 30 frame per second,you never feel a picture delay when using it.
5. Built-in 4 CH display functions,you just press the front button to show you all the videos in turn from 1,2,3,4 for about 10 seconds,or choose any channel for surveillance.
6. End users only need to give power supply to all the cameras and monitor,factory has already setup each channels' frequency,to use it,just Plug and play.
7. With a maximum of 17dBm signal strength,you can get a long transmission distance at a maximum 300 meters ( 990ft ) in open area,so enough to use at home.
8. Adjustable and all direction bracket is helpful to install in any position.with built-in high sensitive microphone.Both video and sound will transmit to the monitor.
9. Outdoor use of camera,its shells are all made of metal alloy,waterproof and durable.
10. Total 24 pieces of infrared LEDs ( 850nm ) to assure night vision,effective distance about 10 meters.
11. With a interface of audio and video to output the signal to other monitoring devices.
12. With earphone interface,you will hear the sound from the camera and will not disturb anyone else,the sound volume is also adjustable,so does the brightness of the screen.
13. When the screen shows letters of “No Signal”,please check the distance and obstacles between camera and monitor.
14. To assure 24-hour's working time,please use the adapter only in the package,don't use other adapter that is not matched with the wireless security systems.
Packaging method:
Factory's general packing will be : each one set of product will be packed in individual inner color / gift box, total 10 sets in one standard export carton.Accept OEM/ODM design for inner box from color /gift box to blister packing,or double blister packing including export carton.

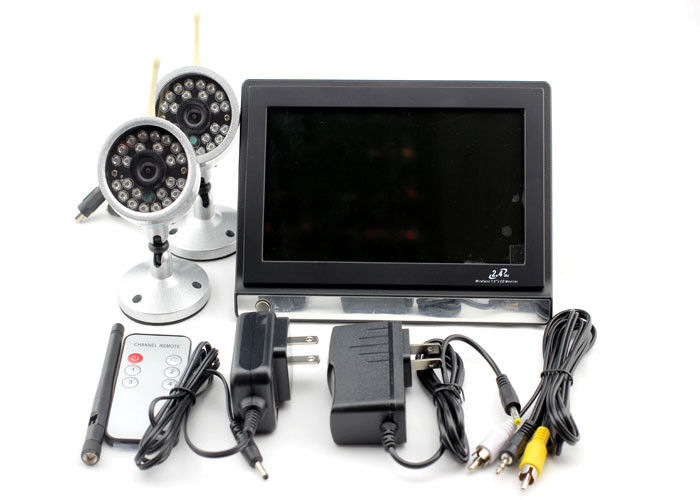

Whole sets of systems:
1 x Monitor
2 x Cameras (or 4)
1 x A/V line
1 x Antenna
1 x Remote control
3 x Adapters
1 x User manual
Applications:
1. Cameras can be used in indoor and outdoor,with 1 to 4 cameras ,1 to 4 channels surveillance.widely use for home,shopping store,baby monitoring,be note that it's for real-time monitoring only without recording,if for recording,please check the DVR products. However,it is convenient for people to want quick set up without wiring.
2. If you need to take the monitor around a small area between rooms,this will no better suit for you.or you want only monitor for a certain time of real-time monitoring at site,you will feel it so convenient and reliable.
Competitive Advantages:
1. Senior engineer from Foxconn company to make the product more competitive on price and quality.
2. Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
3. Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
4. New popular products developed every year to catch up the trend of this field,bring new market share
with clients,can accept OEM/ODM.
5. Experienced sales persons in foreign trade department with more than 3-5 years exporting experiences,quick response for pre-sale service,sale service and after-sale service.
6. Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping
shipping.
7. Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
8. Quality warranty for 1 year,free exchange for defective product within 1 year.
