Product Details:
Payment & Shipping Terms:
|
| Wireless Type: | Analogue | Frequency: | 2.4GHz - 2.485GHz |
|---|---|---|---|
| Material: | Magnalium Alloy | Color: | While Black Silver |
| High Light: | Wireless Surveillance security Systems,Wireless 4 Camera Security System |
||

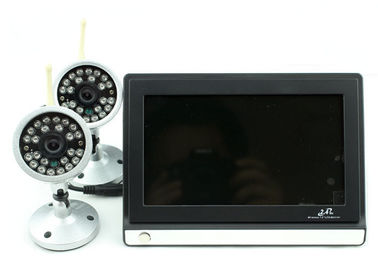

2.4GHz analogue type Wireless Camera Security Systems with wide viewing angle
Specifications:
|
Features of receiver(monitor) |
Transmission frequency |
2.4GHz-2.485GHz |
|
|
Modulation mode |
FM |
|
|
Antenna type |
Omni-directional |
|
|
Power Adapter |
DC 5V/ 1A |
|
|
Receiving sensitivity |
≤85dB |
|
|
Power consumption |
＜5W |
|
|
Operation temperature |
-10℃~50℃ |
|
|
Dimension |
198mm(L)*100mm(W)*43mm(H) |
|
|
Weight |
425g |
|
Features of transmitter (camera) |
Image Sensor |
1/3" omnidirectional vision CMOS |
|
|
Camera Lens |
Imported OV lens from USA |
|
|
Focal length |
3.6mm |
|
|
Horizontal Definition |
420 TV line |
|
|
Number of Color |
130M pixels |
|
|
IR used for night vision |
Quality IR LED 850 |
|
|
Night-vision distance |
8-10 meters |
|
|
Transmission Distance |
Min.100 meters |
|
|
Camera shell |
Magnalium alloy |
|
|
Power Adapter |
DC 5V/ 1A |
|
|
Dimension |
57*mm(D)*118mm(H) |
|
|
Weight |
188g |
Description:
2.4GHz analogue type Wireless Camera Security Systems with wide viewing angle
Feature details:
1. Screen of the monitor adopts high resolution 7-inch full color TFT LCD display.
2. With 4-channel wireless Camera Security systems,real - time display for monitoring spot without picture delay.
3. Support 4 cameras simultaneously,monitor any camera by pressing the front button from No.1 to No.4 or press the same button for 2 seconds to auto switching the camera from No.1 to No.4. This can also be done with remote control.
4. Plug and play,easy to setup without pairing.
5. Long transmission distance,Max 300m in open area.
6. Omni-directional bracket for the camera,with built-in microphone.you can see the video and hear the sound from the monitor.
7. Weatherproof design for the camera,up to IP65,with magnalium shells.
8. Night vision function,24pieces of quality infrared LED 850 used,the same as professional CCTV
camera (Effective range: 8-10m).
9. AV output function allows you to monitor on a bigger screen or connect to DVR.
10. Out of range notification, “No Signal” will be shown on the screen when out of range.
11. Adopt an external power adapter to supply power,through strict test to assure its working time for
7/24,safe and reliable.
12. Slim,portable design,durable product,easy to use.
Packaging type:
1 piece packed in individual inner box,10 pieces in one standard export carton.
Package contents:
1 x Monitor
2 x Camera (or 4pcs upon demands)
1 x AV line
1 x Antenna
1 x Remote control
3 x Adapter
1 x User manual
Applications:
Portable security system,Real-time monitoring at site for all occasions,convenient to take the monitor here and there.
Competitive Advantages:
1. Senior engineer from Foxconn company to make the product more competitive on price and quality.
2. Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
3. Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
4. New popular products developed every year to catch up the trend of this field,bring new market share
with clients,can accept OEM/ODM.
5. Experienced sales persons in foreign trade department with more than 3-5 years exporting experiences,quick response for pre-sale service,sale service and after-sale service.
6. Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping
shipping.
7. Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
8. Quality for 1 year,free exchange for defective product within 1 year.
