Home ProductsWireless Camera Security Systems

4 Channel Wireless Home Security Camera Systems 2.4GH RF modulation

Certifications
Good quality Analog Bullet Camera for sales
Good quality Analog Bullet Camera for sales
Customer Reviews
Very appreciate for your professional service & higher standard quality control,very happy to know you.

—— Mr Johnifere

We trust the quality of your products. It always the best. Keep this going, and we will establish a long-term trade relationship with you.

—— Mr Zero

Excellent quality and fast delivery.

—— Victor

I'm Online Chat Now

4 Channel Wireless Home Security Camera Systems 2.4GH RF modulation

China 4 Channel Wireless Home Security Camera Systems 2.4GH RF modulation supplier
4 Channel Wireless Home Security Camera Systems 2.4GH RF modulation supplier 4 Channel Wireless Home Security Camera Systems 2.4GH RF modulation supplier

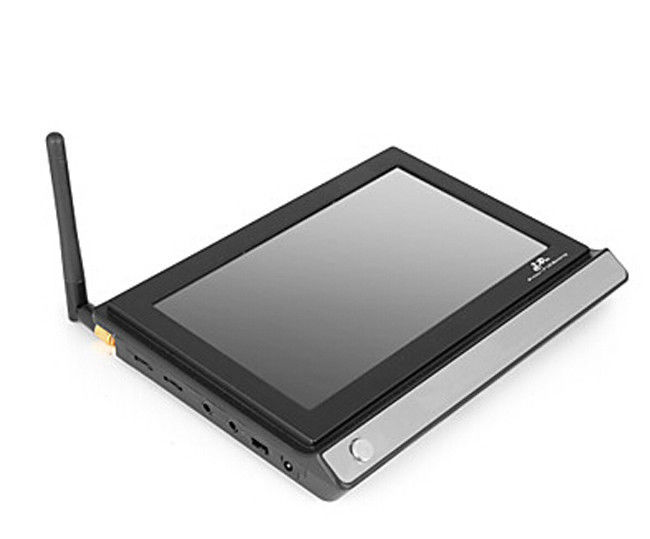

Large Image :  4 Channel Wireless Home Security Camera Systems 2.4GH RF modulation

Product Details:

Place of Origin: China
Brand Name: SEEPOWER
Certification: FCC/CE/RoHS
Model Number: SP860

Payment & Shipping Terms:

Minimum Order Quantity: 10 - 50 sets
Price: US dollars 70 - 85 per sets
Packaging Details: each 1 set packed in individual inner box,10 sets in one standard export carton.
Delivery Time: 7 - 10 working days for MOQ.
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 5,000 sets per 25-30 days.
Contact Now
Detailed Product Description
Focal Length: 3.6MM IR LED: 24 Pieces 850nm
Image Sensor: CMOS F - Number: 2.8

reliable real time monitor wireless camera security systems for home use

Specifications:


Main specifications

Monitor size

7' TFT - LCD RGB color

Receiver ( monitor )

Transmission frequency

2.4GHz-2.485GHz RF modulation



Modulation type

FM modulation



Antenna type

All-directional



Receiving sensitivity

 ≤ 85dB



Power supply

DC 5Volt / 1000mA



Color

White or black



Working humidity

 ≤ 85%



Working temperature

-10℃ ~ 50℃



Dimension

198mm*100mm*43mm

Main specifications

Image sensor

1/3" color CMOS image sensor

Transmission ( camera )

Resolution

480 x 234 pixels



Focal length

3.6mm



Number of Color

130Mega pixels



Camera Lens

OV lens



Horizontal Definition

420 TV line



Transmission Distance

Min.100 meters,line of sight



Night vision distance

8-10m



IR LED type

24pcs of IR LED 850nm



Camera shell

Magnesium aluminium alloy



Power Adapter

DC 5V/ 1 A



Dimension

57*mm(D)*118mm(H)


Description:

reliable real time monitor wireless camera security systems for home use

Features:

1. Adopts ISM 2,400 - 2,485 Mhz,that can be divided for 4 free channels which is called 2.4G analogue type of wireless transmission,fully complied with FCC rules.

2. Through engineers' optimization program,the very cost effective and humanized product was born with imported electronic parts and almost full SMT technology,also bring popular and portable design.

3. It 's known that analogue signal is easy to be interfered,in this product,we try to perform its best performance with a anti-interference 2.4G module,to get a long transmission distance up to 300 meters in open area.

4. TFT - LCD bring the product with high brightness of 300:1,high contrast of 150:1,and hight video speed display of 30 fps for better user experience,and screen size of 480:234, this size will be bigger and bigger in the future.

5. PNP ( plug & play ) products,no need to setup anything,just supply power,video and sound will be shown on the monitor.

6. Every camera will be labeled by No.1,No.2,No.3,No.4 which is also showed on the front panel,every camera in its own channel,press the front button or RC to switch every channel.

7. There is built-in high sensitive microphone and quality CMOS image sensor,wireless camera video just need to transmit audio and video in a synchronous manner.

8. Metal alloy shells bring a weatherproof and outdoor use.

9. Quality IR 850nm LEDs used Which is also used for professional CCTV camera,in the night,you will also see a clear black and white video within about 10 meters far from the camera and the sound source.

10. Be noticed to the “No Signal” on the screen,try to take the monitor or camera closer to each other,some metal box / plate or walls will deduct the signal strength during working.

11. With high quality control,and long time aging test,we assure the wireless security system to work for 24 hours every day,please use its own adapters only,using other adapter may cause problem or danger.

Packaging method:

Factory's general packing will be : each one set of product will be packed in individual inner color / gift box, total 10 sets in one standard export carton.Accept OEM/ODM design for inner box from color /gift box to blister packing,or double blister packing including export carton.

Products includes:

1 x Monitor
2 x Cameras (or 4)
1 x A/V line
1 x Antenna
1 x Remote control
3 x Adapters
1 x User manual

Applications:
1. Cameras can be used in indoor and outdoor,with 1 to 4 cameras ,1 to 4 channels surveillance.widely use for home,shopping store,baby monitoring,be note that it's for real-time monitoring only without recording,if for recording,please check the DVR products. However,it is convenient for people to want quick set up without wiring.

2. If you need to take the monitor around a small area between rooms,this will no better suit for you.or you want only monitor for a certain period time of real-time monitoring at site,you will feel it so convenient and reliable with its speedy video and sound.

Why Choose Us :

Our team:
1. The boss is a senior engineer from Foxconn.also the CEO.
2.Engineer team composed by experienced software and hardware engineer for more than 5-8 years in this field.
3. Experienced sales are ready to answer your questions about consulting,sales service orders,technical support,etc. all of them with more than 3-5 years exporting experiences.

Our products:
1.Follow the procedure of optimized scheme priority.before selling new product to the market,several schemes have to be filtered and only 1 scheme is settled and to start small volume production test.
3.To assure quality,main electronic parts and chip sets are imported from Taiwan,Korea, and USA. then adopts nearly 99.9% SMT technology,along with strict QC control. in this way,bring us lower defective rate, lower labor cost, shorter lead time,to achieve the aim of good quality in relatively lower cost.
4. Development & innovation is never stopped. not only to improve current products every year,but to upgrade to a new version of product as well. Master the trend,master the market.

Our service:
1.Free training and consulting,quick response.
2. Always keep stock for fast delivery.
3. Low MOQ to meet different levels of customers.
4. Accept OEM,ODM from product function to packaging.
5. Limited quality warranty for 1 year,free exchange for defective product within 1 year (except human factors).

Our aim:
1. Insist on offering more cost - effective, stable, experienced & mature products for clients. To minimize & save the cost for some aspects including after - sale service.
2. Stick to the policy of clients utmost, quality first.We share this technological products with our clients to bring activation to their market and to help them keep competitive.
