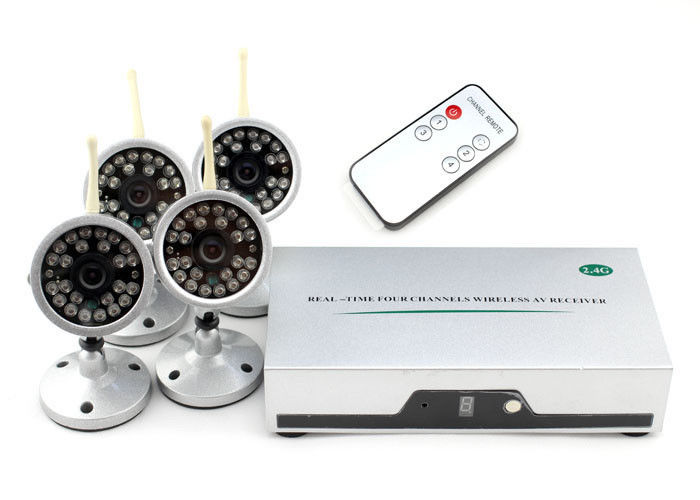

Anti - interference metal shell 4 Wireless Camera Security System with remote control

anti - interference metal shell wireless camera security systems with remote control


Specifications:

Description:

- Frequency stabilization: ±100khz
- Modulation Mode: FM
- Antenna: 50ohm
- Video output: 1Vp-p@75ohm, S/N>3
- Operation temperature: - 10 - +50 / + 14 - 122F
- Power adapter: DC 5 Volt / 1000mA
- Power consumption: < 5w
- TV system: PAL/NTSC
- Pixel supports: PAL, 628(H)x586(V); NTSC, 510(H)x496(V)
- Image device: 1/3" Omni vision CMOS ( RGB ) color
- Wide view angle: 80° (f=2.8mm)
- Synchronization system: internal
- Scanning frequency (H): PAL, 15.625khz; NTSC, 15.734khz
- Scanning frequency (V): PAL, 50Hz; NTSC, 60Hz
- White balance: auto
- S/N ratio: >48db
- Gamma correction: >0.45
- Operation temperature: -10~+50 / +14~122℃/ °F

* Standards adapter to supply power,safe and reliable, 2 steps to finish setup,plug & play,easy to setup and install.Slim,portable design,durable product,easy to use.

* Connect at most  4 cameras simultaneously,monitor any camera by pressing the front button from No.1 to No.4   or press the same button for 2 seconds to auto switching the camera from No.1 to No.4. This can also be done on remote control(must connect to “AUTO” output),* 4-channel monitoring systems,real-time display without video delay

* Cameras with adjustable omni direction bracket, applicable for more occasions.with built-in microphone.you can see the video and hear the sound from the monitor.

* This receiver kit provides people who want to monitor on bigger screen or connect to 1set or 4 sets of monitors at the same time for different purpose,or connect to quad split system to see 4-image video on 1 monitor simultaneously,or connect to DVR system.

* long transmission distance,Max 300m in open area, Out of range notification, “No Signal” will be shown  on the screen when out of range with aluminium shell to avoid external radio frequency interference.

* All - day time working outdoor,weatherproof design for the camera

* 24 pcs of LEDs are ready for night vision automatically,adopt quality infrared LED 850 nanometer (nm).effective range is 8 - 10 meters.

Applications:

Same as SEEPOWRE model SP860 without monitor.

Package content:

1 x Receiver
4 x Camera
4 x AV line
4 x Antenna
1 x Remote control
5 x Adapter
1 x User manual


Competitive Advantage:

1. Senior engineer from Foxconn company to make the product more competitive on price and quality.

2. Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.

3. Main electronics parts and chips from USA,Korea and Taiwan,quality approved.

4. Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.

5. New popular products developed every year to catch up the trend of this field,bring new market share with clients,can accept OEM/ODM.

6. Experienced sales persons in foreign trade department with more than 3-5 years exporting
experiences,quick response for pre-sale service,sale service and after-sale service

7. Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping shipping.

8. Quality for 1 year,free exchange for defective product within 1 year.
