Product Details:
Payment & Shipping Terms:
|
| Product Name: | Wireless Receiver | Modulation Mode: | FM |
|---|---|---|---|
| Channel: | 4-Channel | Standard: | CE/ROHS/FCC |
| Application: | Indoor Use | Definition: | 420TV Line |
| Distance: | Min.100m | Wireless Type: | 2.4G Analogue |
| High Light: | Wireless Surveillance security Systems,Wireless 4 Camera Security System |
||

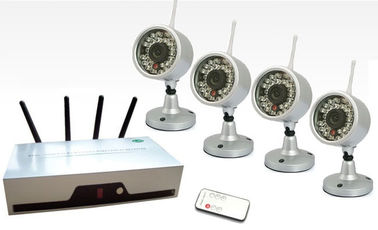

Real time 4 CH Wireless camera Security System by 2.4GHz - 2.485GHz analogue RF modulation
Specifications:
|
Features of receiver |
Transmission frequency |
2.4GHz-2.485GHz analogue RF modulation |
|
|
Modulation mode |
FM |
|
|
Antenna type |
Omnidirectional |
|
|
Power Adapter |
DC 5V/ 1A |
|
|
Receiving sensitivity |
≤85dB |
|
|
Power consumption |
＜5W |
|
|
Operation temperature |
-10℃~50℃ |
|
|
Dimension |
198mm(L)*100mm(W)*43mm(H) |
|
|
Weight |
260g |
|
Features of transmitter (camera) |
Image Sensor |
1/3" omnidirectional vision CMOS |
|
|
Camera Lens |
Imported OV lens from USA |
|
|
Focal length |
3.6mm |
|
|
Horizontal Definition |
420 TV line |
|
|
Number of Color |
130M pixels |
|
|
IR used |
Quality IR LED 850 |
|
|
Night-vision distance |
8-10 meters |
|
|
Transmission Distance |
Min.100m in open area |
|
|
Camera shell |
Magnalium alloy |
|
|
Power Adapter |
DC 5V/ 1A |
|
|
Dimension |
57*mm(D)*118mm(H) |
|
|
Weight |
188g |
Description:
Real time 4 CH Wireless camera Security System by 2.4GHz - 2.485GHz analogue RF modulation
1. Wireless receiver is used for people who want to monitor on bigger screen or connect to 1set or 4 sets of monitors at the same time for different purpose,or connect to quad split system to see 4-image video on 1 monitor simultaneously,or connect to DVR system.
2. 4-channel monitoring systems,real-time display without picture delay.
3. Support 4 cameras simultaneously,monitor any camera by pressing the front button from No.1 to No.4 or press the same button for 2 seconds to auto switching the camera from No.1 to No.4. This can also be done on remote control(must connect to “AUTO” output)
4. Aluminium shell to avoid external radio frequency interference.
5. long transmission distance,Max 300m in open area.
6. Omni-directional bracket for the camera,with built-in microphone.you can see the video and hear the sound from the monitor.
7. weatherproof design for the camera,up to IP65.
8. Night Vision,quality infrared LED 850 used,the same as professional CCTV camera (Effective range: 8-10m).
9. Out of range notification, “No Signal” will be shown on the screen when out of range.
10. Adopt an external power adapter to supply power,safe and reliable.
11. Plug and play,easy to setup and install.
12. Slim,portable design,durable product,easy to use.
Package contents:
1 x Receiver
4 x Camera
4 x AV line
4 x Antenna
1 x Remote control
5 x Adapter
1 x User manual
Applications:
Portable wireless receiver with cameras,Real-time monitoring for all occasions.
Competitive Advantage:
7. Quality for 1 year,free exchange for defective product within 1 year.
Real time 4 CH Wireless HD DVR Security System by 2.4GHz - 2.485GHz analogue RF modulation
