Product Details:
Payment & Shipping Terms:
|
| Channels: | 4 | Wireless Type: | Analogue |
|---|---|---|---|
| Display: | AV Output | Antenna: | External 4 Pcs |
| Color: | Silver | Shell: | Aluminium |
| High Light: | Wireless Surveillance security Systems,4 Channel Wireless security system |
||
real - time 4 channel wireless camera security systems of home security system
Specifications:
|
Main features of receiver |
|
|
Transmission frequency |
2.4GHz - 2.485GHz RF modulation |
|
Modulation type |
FM modulation |
|
Antenna type |
All-directional |
|
Receiving sensitivity |
≤85dB |
|
Power Adapter |
DC 5V/ 1 A |
|
Working temperature |
-10℃~50℃ |
|
Working humidity |
≤85% |
|
Dimension |
198mm(L)*100mm(W)*43mm(H) |
|
Gross Weight |
260g |
|
Main features of camera |
|
|
Sensor type |
1/3" color CMOS image sensor |
|
Resolution |
H:480 V:234 |
|
Focal length |
3.6mm |
|
Number of Color |
130Mega pixels |
|
Camera Lens |
OV lens |
|
Horizontal Definition |
420 TV line |
|
Transmission Distance |
Min.100 meters,line of sight |
|
IR LED type |
24pcs of IR LED 850nm/8-10m |
|
Camera shell |
Plastic |
|
Power Adapter |
DC 5V/ 1 A |
|
Dimension |
57*mm(D)*118mm(H) |
|
Gross Weight |
188g |
Description:
This Wireless kit including receiver and cameras without monitor,so you can connect to any monitor with AV input and DVR system to record and save data.it is absolutely the same function as the SEEPOWER model SP860.but with 5 output interface,you can connect to four monitors for monitoring each camera or only 1 monitor to monitor all 4 cameras in turns.
* 4-channel monitoring systems,real-time display without video lag / delay
* Support 4 cameras simultaneously,monitor any camera by pressing the front button from No.1 to No.4 or press the same button for 2 seconds to auto switching the camera from No.1 to No.4. This can also be done on remote control(must connect to “AUTO” output)
* Wireless receiver is used for people who want to monitor on bigger screen or connect to 1set or 4 sets of monitors at the same time for different purpose,or connect to quad split system to see 4-image video on 1 monitor simultaneously,or connect to DVR system.
* Aluminium shell to avoid external radio frequency interference.
* long transmission distance,Max 300m in open area, Out of range notification, “No Signal” will be shown on the screen when out of range..
* Omni-directional bracket for the camera,with built-in microphone.you can see the video and hear the sound from the monitor.
* All - day time working outdoor,weatherproof design for the camera
* Night vision function,quality infrared LED 850 used,the same as professional CCTV camera (Effective range: 8-10m).
* Adopt an external power adapter to supply power,safe and reliable,plug and play,easy to setup and install.Slim,portable design,durable product,easy to use.
Applications:
Portable wireless receiver with cameras,Real-time monitoring for all occasions.

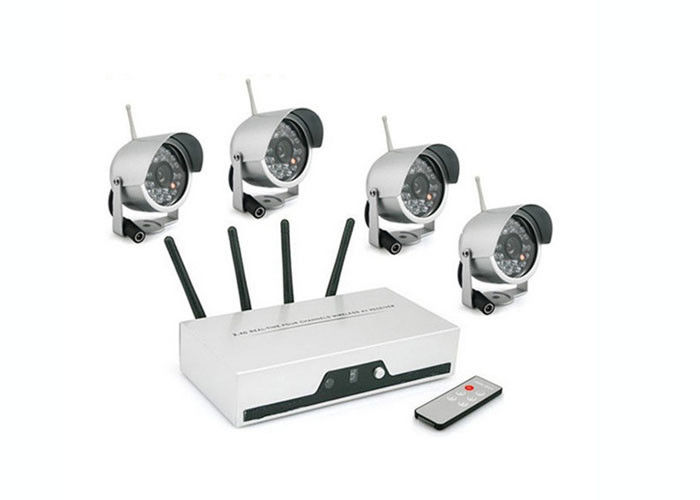

Package content:
1 x Receiver
4 x Camera
4 x AV line
4 x Antenna
1 x Remote control
5 x Adapter
1 x User manual
Competitive Advantage:
1. Senior engineer from Foxconn company to make the product more competitive on price and quality.
2. Optimized scheme was chosen through engineers evaluation to ensure the product safe and reliable.
3. Main electronics parts and chips from USA,Korea and Taiwan,quality approved.
4. Nearly 99.9% SMT technology used, lower defective product ratio(about 1-2%),lower labor cost,lower price,shorter lead time.
5. New popular products developed every year to catch up the trend of this field,bring new market share with clients,can accept OEM/ODM.
6. Experienced sales persons in foreign trade department with more than 3-5 years exporting
experiences,quick response for pre-sale service,sale service and after-sale service
7. Low MOQ can make your business flexible,we also keep stock for your fast delivery or dropping shipping.
8. Quality for 1 year,free exchange for defective product within 1 year.
