Product Details:
Payment & Shipping Terms:
|
| Monitor: | 7 Inches Full Color LCD | Sensitivity: | 2.4 - 2.485 GHz |
|---|---|---|---|
| Lens: | OV | Certificate: | FCC / CE /RoHS |
| High Light: | 4 Camera Wireless DVR Security System,4 Camera Security System With DVR And Monitor |
||

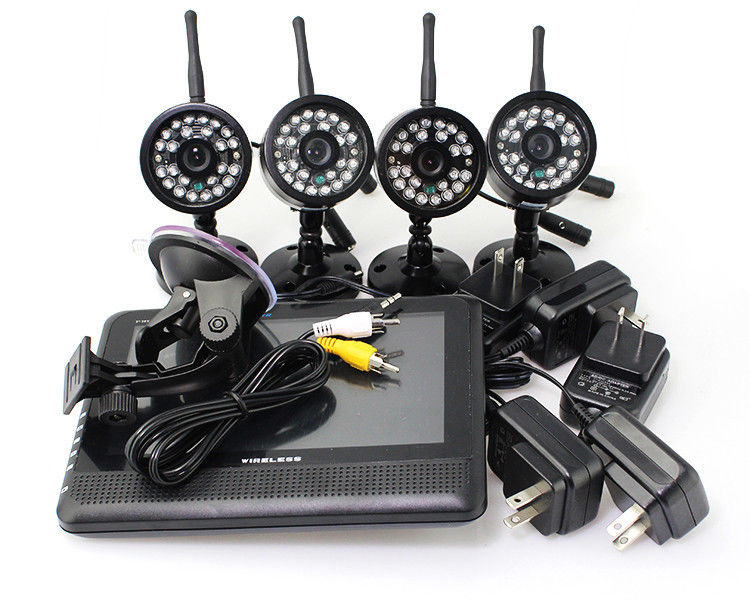

weatherproof black color metal shells 4 camera DVR security system for home use
Specifications:
|
Monitor system - receiver |
Digital Wireless DVR ( SP890 ) |
|
LCD type |
TFT LCD,RGB color |
|
Screen size |
7 inch |
|
Transmission frequency |
2.4GHz-2.485GHz Digital RF modulation |
|
Brightness |
300cd/m2 |
|
Contrast Ratio |
300:1 |
|
Resolution |
H:800 V:480 |
|
TV system |
PAL/NTSC |
|
Power Adapter |
DC 5V/ 1A |
|
Operation temperature |
-10℃~50℃ |
|
Operation humidity |
≤85% |
|
Dimension |
190mm(L)*140mm(W)*20mm(H) |
|
Weight |
425g |
|
Cameras system - transmitter |
|
|
Image Sensor |
1/3" omni - directional vision CMOS |
|
Camera Lens |
Imported OV lens from USA |
|
Focal length |
4.0mm |
|
Horizontal Definition |
480 TV line |
|
Number of Color |
130M pixels |
|
IR used |
Quality IR LED 850 |
|
Night-vision distance |
8 - 10 meters |
|
Camera shell |
Magnalium alloy |
|
Transmission Distance |
100 meters line of sight |
|
Power Adapter |
DC 5V/ 1A |
|
Dimension |
57*mm(D)*118mm(H) |
|
Weight |
188g |
Description:
weatherproof black color metal shells 4 camera DVR security system for home use
Description:
(1). 2.4G Digital wireless modulation with FHSS technology (frequency hopping).Dynamically select free channels to transmit to avoid interference from other 2.4GHz devices.
(2). Screen of the monitor adopts high resolution 7 inch full color TFT LCD display with built-in video recording.
(3). 4-channel quad monitoring DVR security system,real-time video display,monitoring mode:quad image,certain 1 camera or auto switch for 4 cameras.video quality:4CH(quad image) VGA 10fps.1CH(one image) VGA 30fps.
(4). Total transmission with data encryption to protect individual privacy,avoid video to be checked by other device.
(5). Night Vision,quality infrared LED 850 used(24pcs),the same as professional CCTV camera (Effective range: 8-10m).
(6). Omnidirectional bracket for the camera, with built-in microphone you can see the video and hear the sound from the monitor.
(7). Support up to 32G SD TF card, 4 cameras/24hours/7days non-stop overwrite recording,can playback on mobile phone.
(8). Multiple recording modes:manual,schedule and motion detection activated.
(9). Weatherproof outdoor camera,camera shells are made of magnalium alloy.
(10). Long transmission range Up to 300m (990ft) in open area.
(11). Out of range notification,real-time antenna signal bar displayed on the screen.
(12). Support AV output,can monitor on bigger screen like TV,security monitor.
(13). Adopt an external power adapter to supply power,safe and reliable.
Package contents :
1 x Monitor
4 x Camera(paired)
5 x Adapter
1x Suction cup
1 x User manual
Applications:
Real-time monitoring and recording at site for all occasions.
|
Business Organizations |
supermarket, shopping malls, chain shops,hotels, restaurants, travel agencies, pharmacy,post offices
|
|
Public Places |
bookstores, parks, exhibition halls,convention centers, ticket agencies, HR market, lottery centers; Apartments, villas, offices, commercial buildings, model rooms, property brokers;
|
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
|
Frequently asked questions ( FAQ ) :
1. How to add extra camera to the system with 2 cameras now?
If you buy 2 cameras with monitor as one set, sometimes you want to add extra camera to the system, be sure to buy the same camera from the same factory, otherwise it will not work. Read user manual before operation for " pairing " , when gets in the menu of pairing, press “pairing” on the screen, meanwhile press the button on the connector of the camera, you can see the video from the camera immediately.
2. Why can’t I listen to the sound ?
You can’t listen any sound when in quad image monitoring,you need to choose certain channel to hear the sound from camera,be sure the sound of camera is not mute.
3. Will all the recorded audio video be lose when the power is off unexpected?
Before recording,we recommend to choose segment recording mode in the option of Motion Rec. 5s or 10s for every recording segment,so when the power off, you will lose very few data.
4. Can I use other adapter for the system?
Not recommended.The adapters included with the system are customized to meet 7/24 time’s working after strict quality test and aging test, safety and reliable to system and people.
5. Do you accept small orders like 5pcs, 10pcs or drop shipping?
Yes, no problem. We keep stock for about 50 sets for each model, which can be as samples for customers or for small orders. the unit price will be also competitive in small order or drop shipping.
6. Can you accept OEM or ODM order?
That’s welcomed. Believe in our R & D team, you will satisfied with the product which you expected
