Indoor 4 Camera Wireless DVR Security System , Home DVR Security System

China Indoor 4 Camera Wireless DVR Security System , Home DVR Security System supplier

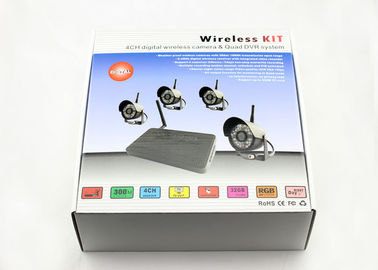

Large Image :  Indoor 4 Camera Wireless DVR Security System , Home DVR Security System

Product Details:

Place of Origin: China
Brand Name: SEEPOWER
Certification: CE/ROHS/FCC
Model Number: SP817

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: negotiation
Packaging Details: Packed in inner box,then in standard export carton
Delivery Time: 25-30 working days for 10,000pcs
Payment Terms: T/T or western Union,Paypal
Supply Ability: 10,000pcs per month
Contact Now
Detailed Product Description
Transmitting Powre: 17 DBm Max Wireless Type: Digital Modulation
Environment Range: Indoor Use Only Distance: 300 Meters

 70 degree wide viewing angle 4 camera DVR security system with 300m transmission range


Specifications:



Features of receiver

Transmission frequency

2.4GHz-2.485GHz Digtal RF modulation



Antenna type

Omnidirectional



Receiving sensitivity

≤85dB



SD card storage

Max.32GB



AV output

 2 ways of output



TV system

NTSC/PAL



Operation temperature

-10℃~50℃



Power Adapter

DC 5V/ 1A



Power consumption

<5W



Dimension

160mm(L)*90mm(W)*46mm(H)



Weight

125g

Features of transmitter (camera)

Image Sensor

1/3" omnidirectional vision CMOS



Camera Lens

Imported OV lens from USA



Focal length

4.0mm



Horizontal Definition

480 TV line



Number of Color

130M pixels



Night-vision distance

8-10 meters



IR used

Quality IR LED 850



Camera shell

Magnalium alloy



Transmission Distance

Min.150m in open area



Power Adapter

DC 5V/ 1A



Dimension

57*mm(D)*118mm(H)



Weight

188g


Description:

70 degree wide viewing angle 4 camera DVR security system with 300m transmission range



Features:


1. Digital wireless receiver is used for people who want to monitor on bigger screen or with 2 - way of output function,can connect to 2 sets of monitors at the same time for different purpose.


2. 2.4G Digital wireless modulation with FHSS technology (frequency hopping).Dynamically select free channels to transmit to avoid interference from other 2.4GHz devices.
3. 2 ways of output interfaces bring high resolution full color display up to 480TV line with built-in video recording.

4. 4-channel quad monitoring DVR security system,real-time video display,monitoring mode:quad image,certain 1 camera or auto switch for 4 cameras.video quality:4CH(quad image) VGA 10fps.1CH(one image) VGA 30fps.


5. Total transmission with data encryption to protect individual privacy,avoid video to be checked by other device.


6. Weatherproof camera with magnalium alloy shells.night vision infrared LED 24 pieces, effective range as far as 8 - 10m.


7. Strong transmitting power up to 17 dBm brings as long transmission range as up to 990 feet in open area.with built-in microphone you can see the vedio and hear the sound from the monitor.


8. Support up to 32G micro SD / TF card, 4 cameras/24hours/7days non-stop overwrite recording,can playback on mobile phone.


9. Camera number, overwriting staus, signal strength bar and real-time recording will be shown on the screen.

Package content:


1 x Monitor
4 x Cameras (paired,factory default )
1 x Manual
5 x Adapters
1x Suction cup

Applications:

Real-time monitoring and recording at site for all occasions.



Business Organizations



supermarket, shopping malls, chain shops,hotels, restaurants, travel agencies, pharmacy,post offices



Public Places

bookstores, parks, exhibition halls,convention centers, ticket agencies, HR market, lottery centers; Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments



Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course






Frequently asked questions ( FAQ ) :



1. How to add extra camera to the system with 2 cameras now?

If you buy 2 cameras with monitor as one set, sometimes you want to add extra camera to the system, be sure to buy the same camera from the same factory, otherwise it will not work. Read user manual before operation for " pairing " , when gets in the menu of pairing, press “pairing” on the screen, meanwhile press the button on the connector of the camera, you can see the video from the camera immediately.



2. Why can’t I listen to the sound ?

 You can’t listen any sound when in quad image monitoring,you need to choose certain channel to hear the sound from  camera,be sure the sound of camera is not mute.



3. Will all the recorded audio video be lose when the power is off unexpected?

 Before recording,we recommend to choose segment recording mode in the option of Motion Rec. 5s or 10s for every recording segment,so when the power off, you will lose very few data.



4. Can I use other adapter for the system?

 Not recommended.The adapters included with the system are customized to meet 7/24 time’s working after strict quality test and aging test, safety and reliable to system and people.



5. Do you accept small orders like 5pcs, 10pcs or drop shipping?

Yes, no problem. We keep stock for about 50 sets for each model, which can be as samples for customers or for small orders. the unit price will be also competitive in small order or drop shipping.



6. Can you accept OEM or ODM order?

That’s welcomed. Believe in our R & D team, you will satisfied with the product which you expected



For more question,please contact with us freely at sales@seepower.cc.



Why Choose Us :


Our team:


1. The boss is a senior engineer from Foxconn.also the CEO.
2.Engineer team composed by experienced software and hardware engineer for more than 5-8 years in this field.
3. Experienced sales are ready to answer your questions about consulting,sales service orders,technical support,etc. all of them with more than 3-5 years exporting experiences.

Our products:


1.Follow the procedure of optimized scheme priority.before selling new product to the market,several schemes have to be filtered and only 1 scheme is settled and to start small volume production test.
3.To assure quality,main electronic parts and chip sets are imported from Taiwan,Korea, and USA. then adopts nearly 99.9% SMT technology,along with strict QC control. in this way,bring us lower defective rate, lower labor cost, shorter lead time,to achieve the aim of good quality in relatively lower cost.
4. Development & innovation is never stopped. not only to improve current products every year,but to upgrade to a new version of product as well. Master the trend,master the market.

Our service:


1.Free training and consulting,quick response.
2. Always keep stock for fast delivery.
3. Low MOQ to meet different levels of customers.
4. Accept OEM,ODM from product function to packaging.
5. Limited quality warranty for 1 year,free exchange for defective product within 1 year (except human factors).

Our aim:


1. Insist on offering more cost - effective, stable, experienced & mature products for clients. To minimize & save the cost for some aspects including after - sale service.
2. Stick to the policy of clients utmost, quality first.We share this technological products with our clients to bring activation to their market and to help them keep competitive.
