Product Details:
Payment & Shipping Terms:
|
| Receiver: | Built In | Display Mode: | Quad DVR |
|---|---|---|---|
| Channels: | 4 Ch | Standard: | CE/ROHS/FCC |
| High Light: | Home DVR Security System,Video DVR Security Systems |
||

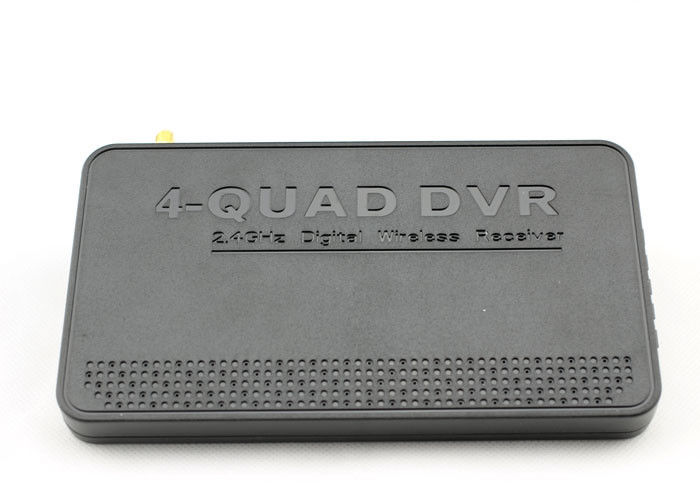

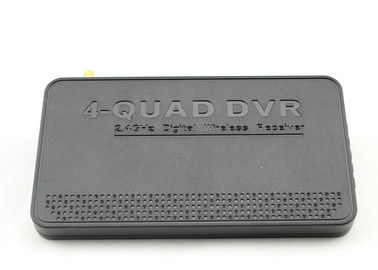

digital receiver box 4 channel DVR security system of quad image OSD menu
Specifications:
|
Features of receiver |
Transmission frequency |
2.4GHz-2.485GHz Digtal RF modulation |
|
|
Antenna type |
Omnidirectional |
|
|
Receiving sensitivity |
≤85dB |
|
|
SD card storage |
Support micro SD /TF 32GB max. |
|
|
AV output |
2 ways of output |
|
|
TV system |
NTSC/PAL |
|
|
Operation temperature |
-10℃~50℃ |
|
|
Power Adapter |
DC 5V/ 1A |
|
|
Power consumption |
＜5W |
|
|
Dimension |
160mm(L)*90mm(W)*46mm(H) |
|
|
Weight |
125g |
|
Features of transmitter (camera) |
Image Sensor |
1/3" omnidirectional vision CMOS |
|
|
Camera Lens |
Imported OV lens from USA |
|
|
Focal length |
4.0mm |
|
|
Horizontal Definition |
480 TV line |
|
|
Number of Color |
130M pixels |
|
|
Night-vision distance |
8-10 meters |
|
|
IR used |
Quality IR LED 850 |
|
|
Camera shell |
Magnalium alloy |
|
|
Transmission Distance |
Min.150m in open area |
|
|
Power Adapter |
DC 5V/ 1A |
|
|
Dimension |
57*mm(D)*118mm(H) |
|
|
Weight |
188g |
Description:
digital receiver box 4 channel DVR security system of quad image OSD menu
Features:
1. Digital wireless receiver is used for people who want to monitor on bigger screen or with 2 ways of output function,can connect to 2 sets of monitors at the same time for different purpose.
2. 2.4G Digital wireless modulation with FHSS technology (frequency hopping).Dynamically select free channels to transmit to avoid interference from other 2.4GHz devices.
3. 2 ways of output interfaces bring high resolution full color display up to 480TV line with built-in video recording.
4. 4-channel quad monitoring DVR security system,real-time video display,monitoring mode:quad image,certain 1 camera or auto switch for 4 cameras.video quality:4CH(quad image) VGA 10fps.1CH(one image) VGA 30fps.
5. Total transmission with data encryption to protect individual privacy,avoid video to be checked by other device.
6. Night Vision,quality infrared LED 850 used(24pcs),the same as professional CCTV camera (Effective range: 8-10m).
7. Omni-directional bracket for the camera, with built-in microphone you can see the vedio and hear the sound from the monitor.
8. Support up to 32G TF card, 4 cameras/24hours/7days non-stop overwrite recording,can playback on mobile phone.
9. Multiple recording modes:manual,schedule and motion detection activated.
10. Weatherproof outdoor camera,camera shells are made of magnalium alloy.
11. Long transmission range Up to 300m (990ft) in open area.
12. Out of range notification,real-time antenna signal bar displayed on the screen.
13. Support AV output,can monitor on bigger screen like TV,security monitor.
14. External power adapter to supply power,low power consumption,all power supply DC 5V, 1A.
Package content:
1 x Monitor
4 x Cameras (paired)
1 x Manual
5 x Adapters
1x Suction cup
Applications:
Real-time monitoring and recording at site for all occasions.
|
Business Organizations |
supermarket, shopping malls, chain shops,hotels, restaurants, travel agencies, pharmacy,post offices
|
|
Public Places |
bookstores, parks, exhibition halls,convention centers, ticket agencies, HR market, lottery centers; Apartments, villas, offices, commercial buildings, model rooms, property brokers;
|
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
|
TOP 5 reasons to buy:
Digital wireless technology
Digital wireless technology adopted for this system, that enables you with no messy wiring involved when setting the system up. This advanced system automatically connects on its own ( already paired, factory default settings) so you will be watching clear, interference-free footage in seconds. Superior digital functionality ensures that the signals passing between the camera and receiver / monitor remain strong as you monitor your place wirelessly, up to 150 - 200 meters away.
Long range night vision
The indoor/outdoor cameras provides you with a clear, secure picture, even when you monitor after - hours or in a dark location. Each camera is equipped with advanced night vision and 24 infrared (IR) LEDs that let you see clearly in the dark, up to 8 - 10 meters away! The LEDs activate automatically when it gets dark, and deactivate during the day to save energy (CDS sensor). With this system, you can rest assured, knowing that you will have around the clock protection.
SD card recording
you can check if anyone was on your property when you were not there. This system supports recording in micro SD card in different recording mode. Recording by motion detection will help you record more data but use less storage, micro SD card can be easily reviewed on monitor or mobile phone.
Support A /V output
This system supports an external TV / monitor with RCA connections. Connect your receiver / monitor to any television in your home or business with the included AV cable and experience the convenience of watching your video on any size of screen.
7/24 customer service
Technical support is available for you whenever you need it. Our team can be reached by phone or by email at any time, so that you will always have access to an expert.
