Product Details:
Payment & Shipping Terms:
|
| Channel: | 4-Channel | Definition: | 480 TV Line |
|---|---|---|---|
| Distance: | Min.150m | Wireless Type: | Digital Wireless |
| High Light: | Wireless Camera Security System With DVR,Digital Wireless DVR Security System |
||
Long range transmission digital Wireless DVR security system with TV system support
Specifications:
Features of receiver | Transmission frequency | 2.4GHz-2.485GHz Digtal RF modulation |
| Antenna type | Omnidirectional |
| Receiving sensitivity | ≤85dB |
| SD card storage | Max.TF 32GB |
| AV output | 2 ways of output |
| TV system | NTSC/PAL |
| Operation temperature | -10℃~50℃ |
| Power Adapter | DC 5V/ 1A |
| Power consumption | ＜5W |
| Dimension | 160mm(L)*90mm(W)*46mm(H) |
| Weight | 125g |
Features of transmitter (camera) | Image Sensor | 1/3" omnidirectional vision CMOS |
| Camera Lens | Imported OV lens from USA |
| Focal length | 4.0mm |
| Horizontal Definition | 480 TV line |
| Number of Color | 130M pixels |
| Night-vision distance | 8-10 meters |
| IR used | Quality IR LED 850 |
| Camera shell | Magnalium alloy |
| Transmission Distance | Min.150m in open area |
| Power Adapter | DC 5V/ 1A |
| Dimension | 57*mm(D)*118mm(H) |
| Weight | 188g |
Description:
Long range transmission digital Wireless DVR security system with TV system support
Features:
1. Digital wireless receiver is used for people who want to monitor on bigger screen or with 2 ways of output function,can connect to 2 sets of monitors at the same time for different purpose.
2. 2.4G Digital wireless modulation with FHSS technology (frequency hopping).Dynamically select free channels to transmit to avoid interference from other 2.4GHz devices.
3. 2 ways of output interfaces bring high resolution full color display up to 480TV line with built-in video recording.
4. 4-channel quad monitoring DVR security system,real-time video display,monitoring mode:quad image,certain 1 camera or auto switch for 4 cameras.video quality:4CH(quad image) VGA 10fps.1CH(one image) VGA 30fps.
5. Total transmission with data encryption to protect individual privacy,avoid video to be checked by other device.
6. Night Vision,quality infrared LED 850 used(24pcs),the same as professional CCTV camera (Effective range: 8-10m).
7. Omni-directional bracket for the camera, with built-in microphone you can see the vedio and hear the sound from the monitor.
8. Support up to 32G TF card, 4 cameras/24hours/7days non-stop overwrite recording,can playback on mobile phone.
9. Multiple recording modes:manual,schedule and motion detection activated.
10. Weatherproof outdoor camera,camera shells are made of magnalium alloy.
11. Long transmission range Up to 300m (990ft) in open area.
12. Out of range notification,real-time antenna signal bar displayed on the screen.
13. Support AV output,can monitor on bigger screen like TV,security monitor.
14. Adopt an external power adapter to supply power,safe and reliable.
15. Plug and play,easy to setup and install.

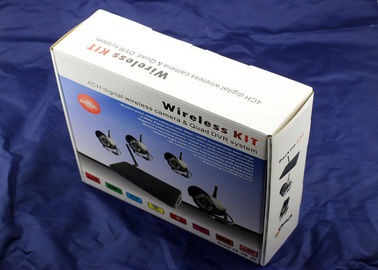

Package content:
1 x Monitor
4 x Cameras (paired)
1 x Manual
5 x Adapters
1x Suction cup
Applications:
Real-time monitoring and recording at site for all occasions.
Business Organizations | supermarket, shopping malls, chain shops,hotels, restaurants, travel agencies, pharmacy,post offices |
Public Places | bookstores, parks, exhibition halls,convention centers, ticket agencies, HR market, lottery centers; Apartments, villas, offices, commercial buildings, model rooms, property brokers; |
Entertainments | Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course |
