| Recording Mode: | Manual,schedule,auto | Material: | Metal |
|---|---|---|---|
| Sensor: | 1/3" CMOS | SD Card: | SD / TF (not Included) |
| High Light: | Wireless Camera Security System With DVR,Digital Wireless DVR Security System |
||
Quad image slim size 300m digital wireless DVR security system with overwrite function
Specifications:
|
General specifications for Monitor |
|
|
Monitor screen |
TFT - LCD |
|
Screen type |
7' full color |
|
Contrast Ratio |
300:1 |
|
Brightness |
300cd/m2 |
|
Operating frequency |
2.4GHz - 2.485GHz digital modulation |
|
Antenna type |
All-directional 2dB |
|
Receiving sensitivity |
≤85dB |
|
Speaker output |
80dBA |
|
Power Adapter |
DC 5 V / 1000mA |
|
Working temperature |
-10℃~50℃ |
|
Working humidity |
≤85% |
|
Weight |
425g |
|
Dimension |
190mm(L)*140mm(W)*20mm(H) |
|
General specifications for Camera |
|
|
Sensor type |
1/3" CMOS image sensor |
|
Focal length |
4.0mm |
|
Resolution |
H:800 x V:480 |
|
Camera Lens |
American OV lens |
|
Number of Color |
130Mega pixels |
|
IR LED type |
24pcs of IR LED 850nm/8-10m |
|
Transmission Distance |
Min.100 meters,line of sight |
|
Camera material |
Mg-Al alloy |
|
Power Adapter |
DC 5 V / 1000mA |
|
Weight |
188g |
|
Dimension |
57*mm(D)*118mm(H) |
Features / Description:
Quad image slim size 300m digital wireless DVR security system with overwrite function
(1). This digital wireless DVR security systems is comply with FCC rules,it has high interference resistance and don't interfere other digital devices.
(2). Fast and wide transmission bandwidth up to 3M in the channel of ISM 2.4GHz - 2.485GHz,match with top - rated MCU control,smooth video display is achieved,as must as 30 fps. (frames per sec )
(3). High resolution: 800 (Horizontal) x 480 (Vertical),high brightness: 300cd/m2,high contrast ratio: 300:1 in a 7-inch area,more clear,more brighter,full color,to compose a professional and portable monitor.

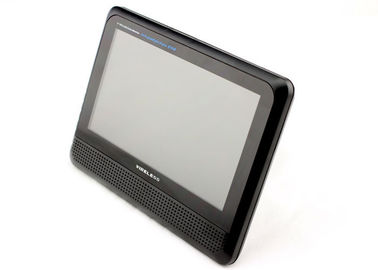

(4). 7-inch TFT LCD display with integrated video recorder.
(5). FHSS tech:auto frequency hopping in different channels to avoid data crowd,all data is encrypted,no privacy leak.
(6). Video quality :4 - CH, 10 fps, and 1 - CH, 30 fps.
(7). Outdoor camera with metal shell and built-in micro-phone,300m/990ft transmission range.
(8). Up to 4 Cams/24hrs/7days,all-weather,never stop,overwrite recording/ different recording modes are optional.
(9). Support external micro SD / TF card,Max 32GB.
(10). 10 - 15 meters night - vision range.
(11). Video output function for bigger monitor.
Package includes :
1 x Monitor
4 x Cameras (already paired,factory default)
5 x Adapters
1x Suction cup
1 x User manual
Applications for :
| General purpose for all occasions | |
|
Business |
supermarket,offices,shopping malls,drug store,chain shops, home hotels, restaurants, retail store,pharmacy,post offices |
|
Public Places |
book stores, parks, exhibition halls,convention centers, ticket agencies, |
|
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, |
