Product Details:
Payment & Shipping Terms:
|
| Features: | Wireless | Type: | Bullet |
|---|---|---|---|
| Connectivity: | IP/Network - Wireless | Senser: | CMOS |
| Number Of Cameras: | 4 | DVR/NVR Channels: | Four |
| High Light: | household security camera,night security cameras |
||

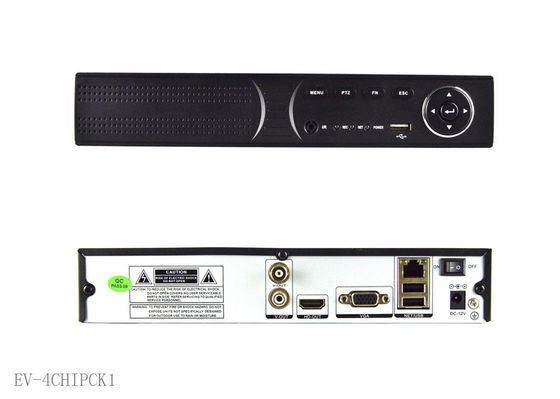

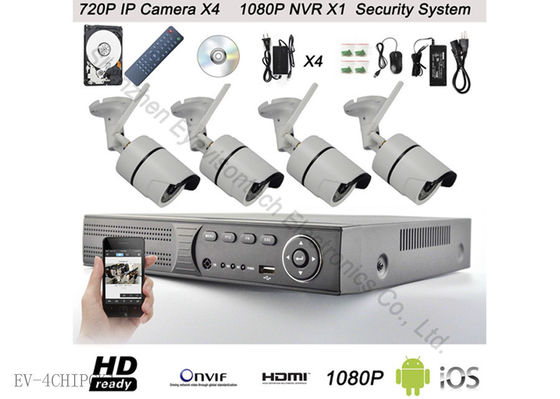

720P 4CH Home CCTV Camera , IP Security Camera System Network Video Recorder 500G
Product Overview :
|

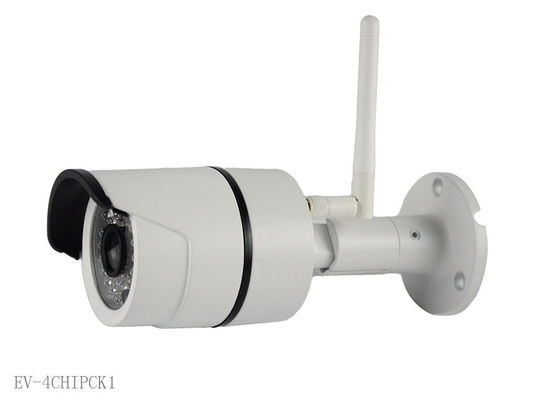

Camera Specifications :
|
|
| Image Sensor | |
| Sensor | CMOS |
| Sensor Size | 1/4 Inch Color CMOS Sensor |
| Resolution | 1.0 Megapixels |
| Lens (mm) | 3.6 |
| Minimum Illumination (Lux) | 0 Lux |
| Video Image/Audio Setting | |
| Video Frame Rate (FPS) | NTSC:30fps(1280x720); PAL:25fps(1280x720) |
| Video Adjustment | Auto Backlight Compensation, Auto White Balance, Contrast Adjustable,Brightness Adjustable |
| Communication&Interface | |
| Network Interface | Wi-Fi/802.11/b/g, RJ-45 10/100Mb self-adaptable Ethernet slot |
| Supported Protocol | DNS, FTP, PPPoE, UPNP, DDNS, HTTP, SMTP, DHCP, TCP/IP |
| Wireless Security | WPA2, WPA, WEP |
| IP Mode | Static IP address, Dynamic IP address |
| Physical/Environment | |
| Environment | Outdoor/indoor |
| Power Supply (V) | 12V |
| Operate Temperature (℃) | -10°~50°C (14°~122°F) |
| System Requirment | |
| Supported Mobile Systems | Android, iPhone OS |
| Supported Operating Systems | Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP,Microsoft Windows 2000, Microsoft Windows ME, Microsoft Windows 98 |
| Supported Browers | Google Chrome, Firefox, Safari, IE, Other Standard Browser |
| Additional Features | |
| Features | Plug and play, Remote Access, Motion Detection, Day Night, Waterproof |
| IR Night Vision Distance (m) | 20 |
| Language | Traditional Chinese, Français, España, Italian, Português, Deutsch,English |
| NVR Technical Parameters | |
| Main Processor | HISILICON 3520D |
| System Resource | Live recording, Playback, Backup, Remote view, Mobile monitoring |
| Control Mode | Front panel, USB mouse, IR remote control, Network |
| Display | Support:, |
| Video | 4CH Input,1CH TV Output,1CH VGA Output , 1*HDMI(1080P) |
| Audio | 4CH Input |
| Alarm | YES |
| Recording | 4*960P/1080P real time |
| Play back | 4*960P or 2*1080P real time |
| PTZ | YES |
| HDMI | YES |
| DVD Option | NO |
| HDD Capacity | SATA Interface HDD*1 |
| Network Interface | 1*RJ45,100Mbps Ethernet |
| Upgrade | USB DISK, Network |
| Backup | USB DISK, Network |
| User Extend | Design boot screen LOGO by yourself |
| Power supply | 12V/2A |
| Working environment | -10°~+55°/10~90%RH/86~106Kpa |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Professional technical support
5. CE,FCC,RoHS passed
Effect picture:
Application:
