Product Details:
Payment & Shipping Terms:
|
| Category: | 4 / 8 / 16 CH D1 DVR | Material: | Metal |
|---|---|---|---|
| Color: | Black | Operating System: | Embedded LINUX |
| Video Compression: | H.264 | Power Supply: | DC 12V, 2A |
| High Light: | digital camera video recorder,digital video surveillance recorder |
||

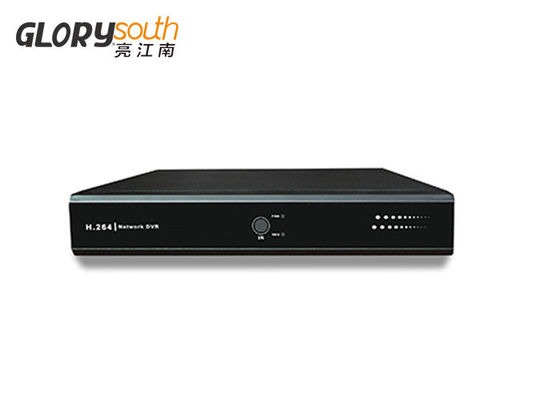

H.264 4CH DVR HD Digital Video Recorder 8CH 16CH D1 or 960H Embedded DVR Black
Quick Detail:
Specifications (4CH D1 as Example) :
|
Main Processor |
HISILICON Hi3515A chip |
|
System Resource |
Pentaplex: Live recording, Playback, Backup, Remote access, PTZ control, Mobile monitoring |
|
Control Mode |
Front panel, USB mouse, IR remote control, Keyboard, Network |
|
Video Standards |
PAL(625 line,50 f/s);NTSC(525 line,60 f/s) |
|
Coding capacity |
100/120fps 4D1@25fps |
|
Motion Detection |
Zones:396(22*18)detection zones, many Levels of Sensitivity Setting |
|
Surveillance Quality |
PAL,D1(704×576); NTSC,D1(704×480) |
|
Video |
4CH BNC Input 1CH TV Output 1CH VGA Output |
|
Audio |
4CH RCA Input,1CH RCA Output |
|
Alarm |
NO |
|
Play back |
4CH at the same time |
|
PTZ |
1*RJ485 Support PELCO-D,PELCO-P Procotol |
|
USB |
2 * USB2.0 |
|
Mobile Phone |
Support iPhone, Symbian OS, Blackybreey and Android Mobile phone |
|
HDD Capacity |
Up to 3TB,SATA Interface HDD*1 |
|
Network Interface |
1*RJ45,100Mbps Ethernet |
|
Upgrade |
USB DISK,Network |
|
Backup |
USB DISK,Network |
|
User Extend |
Design boot screen LOGO by yourself (Optional) |
|
Power Supply |
12V/2A |
|
Working Environment |
-10℃~+55℃/10~90%RH/86~106Kpa |
Why Choose Glory South?
In fact, most of the manufacturers sell with at least 20% profit while we sell with merely 5%
profit for exactly same products. At the same time, we provide 3 years warranty.
We aim to support 1000+ CCTV companies to grow to be BIG WHOLESALERS in their countries
or regions by 2017!! Would you like to join us?
Glory South Introduction:
China’s leading CCTV products manufacturer, having 6000sqm factory in Shenzhen and Dongguan.
We own several top CCTV brands and subsidiary companies, including Xidean Electronic Science and
Technology Co., Ltd. Our products are hot sold in America, Europe, Middle East, Africa, Southeast
Asia etc, as well as China’s major cities based on the longterm friendly cooperation with more than 800
agents and dealers worldwide. By 2014, nearly 50 national key projects are using our CCTV products.
Besides, Binwo Brand is one of Xidean’s successful brands, targeting on E commerce market. It aligns
the production standards and quality with our offline products and has been awarded ‘Top 10 Leading
Security Brand in China’, ‘Customers Top 10 Favorite Security Brand in China’ and ‘Top 100
Best Security Product Enterprise in China’.
