Product Details:
Payment & Shipping Terms:
|
| Category: | 4 / 8 / 16 CH AHD DVR | AHD Cameras: | Support 720P 960P AHD Cameras |
|---|---|---|---|
| Analog Camera: | Support All Types Of Analog Cameras | IP Cameras: | Support 720P IP Cameras |
| Dimensions: | 235(D) X 260(W) X 40(H)mm | Weight: | 2 KG ( Not With HDD ) |
| High Light: | digital camera video recorder,digital video surveillance recorder |
||
Top Selling Product:

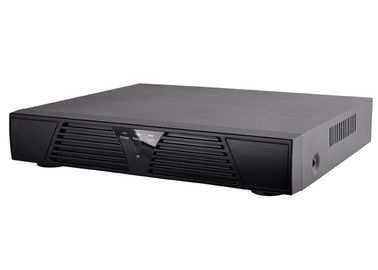

AHD DVR Hybrid Digital Video Recorder for 720P and 960P HD Analog Camera 4 8 16 Channel
Top Choice for this Series:
23$ for 4CH, 31$ for 8CH and 77$ for 8CH
Great Picture
Specifications (4CH AHD DVR as Example) :
| System | |
|
Main Processor |
ARM Cortex A9 Processor |
| Operating System | Embedded LINUX |
| Video and Audio | |
| Video Input | 4 Channel, AHD |
| Video Output | 1 VGA, 1 TV,1 HDMI |
| Audio Input | 4Channel, RCA |
| Audio Output | 1 Channel, RCA |
| Recording | |
| Video Compression | H.264 |
| Audio Compression | ADPCM |
| Resolution | 720P(1280×720), 960H(P:960×576/N:960×480) |
| Video Quality | Best/Fine/Normal |
| Record Rate | 720P(1280×720 100fps/120fps), 960H(P:960×576 100fps/N:960×480 120fps) |
| Record Mode | ManualTimerMotion Detection |
| Playback & Backup | |
| Sync Playback | 4 Channel / 1Channel |
| Remote Playback | 4 Channel / 1Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital zoom |
| Backup Mode | USB Device/Network |
| Display | |
| VGA | Resolution: 800×600, 1024×768, 1280x720, 1280×1024, 1920x1080 |
| HDMI | Resolution: 720P(1280×720), 1080P(1920×1080) |
| Display Split | 4 Channel / 1Channel |
| Privacy Masking | 4 Rectangular Zones (Each camera) |
| OSD | Camera Title, Time, Video Loss, Motion Detection, Recording |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | HTTP, IPv4,IPv6, TCP/IP, DHCP, DNS, DDNS, NTP |
| DDNS | 3322, Dyndns, changeip, no-ip |
| Web Browser | IE6-11, Firefox, Chrome (Under Windows System) |
| CMS Software | Support Windows XP /Windows Vista/Windows 7/Windows 8 |
| Extra Stream | D1/CIF/QCIF(1~25fps) |
| Smart Phone | iPhone, iPad, Android, Android Pad |
| Alarm | |
| Sensor Input | No |
| Output | No |
| Motion Detection | 4 Channel |
| Trigger Events | Recording, PTZ, Tour, Email |
| Email Alarm | Send Strings to The Designated E-mail |
| PTZ | |
|
Interface |
RS485 |
| Protocol | Pelco-D, Pelco-P |
| Baud Rate | 1200~115200 |
| Address | 0~255 |
| Hard Disk Driver | |
|
Interface Type |
1 SATA Interface |
| Capacity | Up to 4TB Capacity |
| General | |
|
Language |
Support 19 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic, |
|
USB Interface |
2 USB 2.0 Interfaces |
|
Power Supply |
DC12V/2A |
|
Working Environment |
-10~55℃/10~90% |
|
Dimension (W×D×H) |
235(D) x 260(W) x 40(H) mm |
|
Weight |
2 KG ( not with HDD ) |
