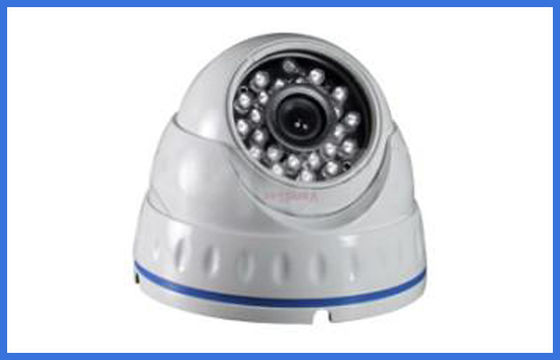

Low Illumination 960P IR Dome AHD CCTV Camera 1/3" CMOS Sensor HD For Indoor Security

Low Illumination 960P IR Dome AHD CCTV Camera 1/3" CMOS Sensor HD For Indoor Security
Low Illumination 960P IR Dome AHD CCTV Camera 1/3" CMOS Sensor HD For Indoor Security

Large Image :  Low Illumination 960P IR Dome AHD CCTV Camera 1/3" CMOS Sensor HD For Indoor Security

Product Details:
Place of Origin: China
Brand Name: Zhibosen
Certification: CC,CE,FC,ROSH
Model Number: ZBS-HD108
Material: Metal
Color: White
IR: 24*¢5 LED
IR distance: 20M
Lens: 3.6/4/6mm optional
Weight: 480g
Detailed Product Description
High Light:

HD AHD Camera

,

HD CCTV Camera

Low Illumination 960P IR Dome AHD CCTV Camera 1/3" CMOS Sensor HD For Indoor Security





Quick Detail:





◆ 1/3" Sony IMX238+NEXTCHIP2431H 1.3 Megapixel CMOS Sensor
◆ 1500TV Lines Low illumination 960P: 1280 * 960, at 30fps

◆ Vandalproof IR Dome Camera
◆ IR LED: ¢5X24pcs, IR Range: 20M
◆ Lens: Board Lens 3.6mm
◆ Size: 94mm x 69mm
◆ Weight: 480g





Features:





1. Uses high performance 1/3 "CMOS image sensor;
2. BNC interface,support 75-3 coaxial-cable lossless,transmission is up to 500 meters;
3. Real-time transmission, zero delay;
4. Supports AHD HD and SD output analog switch;
5. IR-CUT day and night switching;
6. Supports OSD menu to adjust the parameters (optional);
7. Infrared night vision distance: 10-30M.





Applications:




Applicable to financial services, supermarkets, telecommunications, government, schools, airports, factories, hotels and other places HD quality requirements



Specifications :



Camera lens Standard 3.6mm (4mm/6mm/8mm optional)
Image sensor 1/3" IMX238+NEXTCHIP2431H,1.3 Megapixel CMOS Sensor
Resolution The PAL/NTSC:AHD-M definition (TVL) equivalent to HD 960P IP camera
Minimum illumination Color: 0.01Lux@ (F1.2, AGC, ON), 0 Lux with IR;
Black and white: 0.001Lux@ (F1.2, AGC ON), 0 Lux with IR
Video standards Follow AHD and CVBS standard
Electronic shutter 1/50 (1/60) seconds to 1/100000 seconds
OSD menu optional
Infrared distance 10-50 M
Maximum transmission distance Common 75-3 coaxial-cable transmit 500M
SNR More than 58dB
The synchronization system Internal synchronization
Type of lens Manual / DC / video
Shutter / AGC Automatic / manual
White balance Automatic white balance
Day and night mode Automatic / black and white / color
Synchronous mode Internal synchronization
Video output 1 channel AHD HD signal/standard definition CVBS(Switchable)
Composite1Vp-p/750hms
Power input DC12V/1A
Working temperature -10 degrees C-60 degrees C
Working humidity Humidity is less than 90%
Power Less than 6W (IR LED not opened), less than 10W (IR LED on)





Competitive advantages:




Good price, reliable quality, guarantee of delivery, best services
