|Communication:||ONVIF & H264||Output:||8ch DVI-i Output|
|Input:||ONVIF IP Camera No Limit On Quantity||PTZ Contrrol:||By Joystick|
video matrix switcher

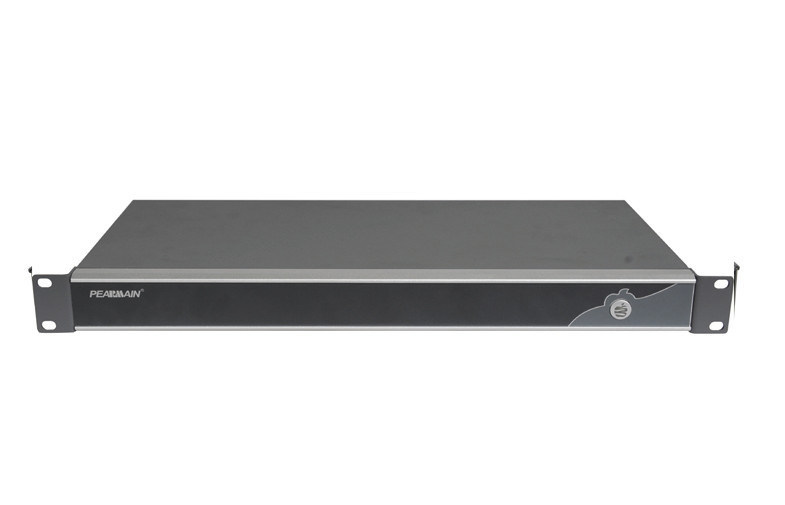

PM60 Series IP Video Matrix System , ONVIF & H264 comaptible, IP camera quantity no limit to decode , Decoder with 8ch DVI-i output
● IP PTZ decode on base of Onvif or RTSP protocol, 8ch HDMI output.
● Segmentation: one screen display up to 2x2@1080p, 3x3@720p, 4x4@D1;
● Slicing: all 8 screen to display one camera.
● With the function of monitor ,broadcast and intercom.
● Multiple equipment cascaded can achieve large scale network decode and display function.
● Can carry out few non-network HD video input;
● Support 2 megapixel or higher IPC input ,decode and display;
● Support automatically identify best resolution of display unit, support maximum 1920x1080P@60HZ output.
● Support time, character, alarm info. On-screen display.
● alarm input and output.
● Audio input and output
● Standard 1U height
● CE, FCC, ROHS,UL compliant
The PM60 IP matrix could allow the end user to have the touch and feel of an analog system, like 1 CAM+1MON to switch camera video, the Joystick offers precise steering for PTZ.
That is our Idea to develop the PM60 IP matrix: The IP PTZs will operate much like a typical Analog PTZ system with each PTZ being assigned an IP address by the switch and the communication path/language being over IP protocol. The operate needs to control 4 monitors at least via a controller to put a specific camera on a specific monitor. The controller will also need the ability to access and manipulate the PTZ programming menu.
the IP matrix must be addressed via IP address either static or DHCP and have an internal web page.

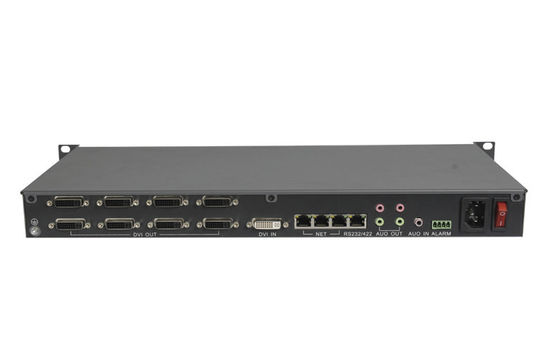

1ch DVI-I,support DVI/VGA/YPbPr input.
8ch DVI-I,support DVI/VGA output.
Supports information searching on screen.
3/4ch,100M/1000M adaptive RJ45 port.
1ch ,Ф3.5 earphone socket .
4ch ,Ф3.5 earphone socket .
2ch , supports alarm C.C.( contact closure )output, 3.81 connector.
1 RS232 & 1 RS422, by RJ45 .
IP video decode
IP video input
DVI input definition
DVI output definition
Video decode display
one PE7008 supports decoding and displaying 16ch1080P@30HZ, or 36ch 720P or 64ch D1; single unit supports 4ch 1080P@50Hz, 1080P@60Hz; for 2~5megapixel, Maximum quantity is 4ch
Supports 8 screens splicing freely, maximum 72 screen splicing by cascade.
Support 1/4/9/16 windows display
maximum 2x2 screens@1080P
maximum 3x3 screens@720P
maximum 4x4 screens@D1
Supports Chinese/English OSD character superposition
Time display, Monitor No. display.
Support titles overlaying, Maximum 16 titles overlay in
one screen, maximum 40 characters per title,
Alarm information display.
G.711,G.726,ADPCM Audio encode/decode.
Supports all channels and single channel quick setting individually.
1ch audio encode, turn on/off for Audio input.
4chs output, can switch freely.
Supports regional broadcast in LAN (local area network) .
Supports regional broadcast in all area network .
Management and maintenance
Multi-user login/logout,Maximum supports 72 users online at same time.
Supports video switching and controlling.
Support Segmentation display mode management
Automatic inspection, setting and call.
Supports rollback playing.
system manage and configuration
support web configure, configuration upload and reload.
operation permission setting and management
system log available
Fault detection and report.
support online updating.
maximum 9 units cascading, it can have up to 72 screens splicing.
it supports to 3 level networking by platform.
interior RTC, it could time automatic synchronization, offer standard port, to keep sync. To time server inside the system.
support network alarm input
2ch alarm relay out and network alarm output.
multiple alarm event processing mode.
video screen control port available
best resolution identification
support best resolution identification
maximum decode delay
For the surveillance system where there are IP input only, the application focus on real time surveillance, the output to video wall.
The application could be medium scale surveillance system, such as commercial building, shopping mall, etc.
