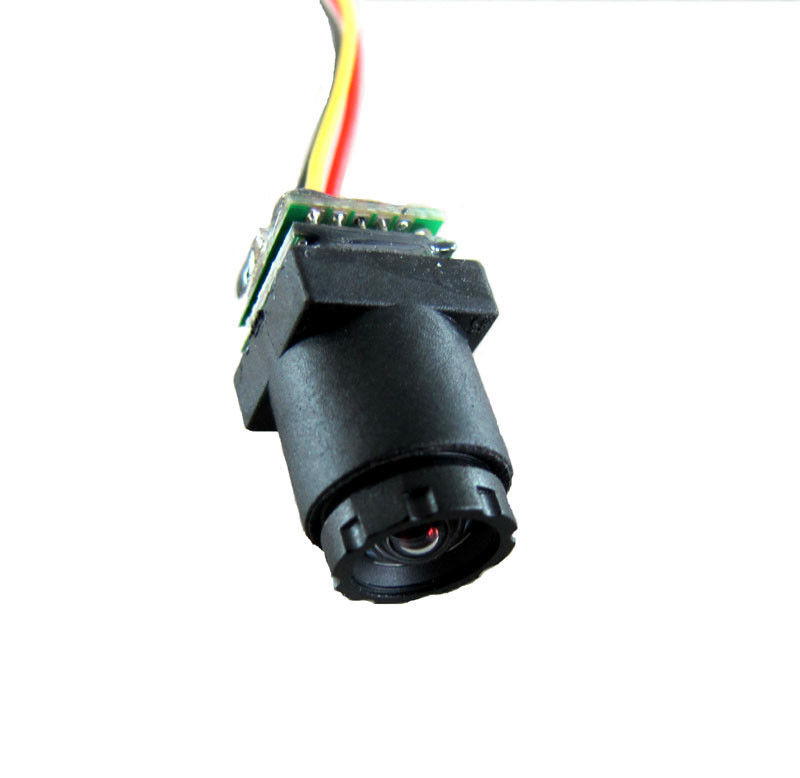

90 Degree 5V FPV Camera Small Security Cameras With Night Vision

90 Degree 5V FPV Camera Small Security Cameras With Night Vision
90 Degree 5V FPV Camera Small Security Cameras With Night Vision 90 Degree 5V FPV Camera Small Security Cameras With Night Vision 90 Degree 5V FPV Camera Small Security Cameras With Night Vision

Large Image :  90 Degree 5V FPV Camera Small Security Cameras With Night Vision

Product Details:
Place of Origin: China
Brand Name: kimpok
Certification: CE/FCC/ROHS
Model Number: KP-C10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,PayPal
Supply Ability: 3,000 pieces per month
Detailed Product Description
Encryption: AES 128 Bit / ALLTECH Basic Scrambling Video Compression: H.264
Bandwidth: 2/2.5/4/8M(adjustable) AV Interface: BNC
Size: 200*130*60mm Weight: 2.8kg
High Light:

Micro FPV Camera

,

Miniature Video Camera



Military Backpack COFDM Video Transimtter 720P Wireless Long Rang Surveillance System



Introduction:



The device is our New Sole design COFDM transmitter and receiver KP-C10. Has a character of Walkie Talkie functio,long range remote control and more intuitive as well natural. Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation. Provide high quality of picture in resolution 720*576, short latency. Support NLOS and high speed mobile transmission.Support parameters adjusted by user. PAL/NTSC video format self- adaption and good anti-intereference.



This special designed system is for long range distance for military use, it is also popular to use in other fields for live broadcast video audio transmission.


Features:

  1. 10Watt rf power, strong penetration;
  2. 300-800MHz, 2.3-2.7GHz etc., adjustable frequency;
  3. Video + data simultaneously.



Tech Specification:



Transmitter parameters:



 Frequeny/AV

300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)

can be adjustable by user,100MHz interval.

 Frequeny/DATA  200-270MHz(adjustable),or other band
 Modulation  COFDM 2K QPSK
 RF power output  10W
Voltage  DC11-14.5V
 Current  2.7A
Video rate   15Mbps(MAX)
 Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
 FEC  1/2,2/3,3/4,5/6,  7/8  (optional)
 Guard Interval  1/32,1/16,1/8,1/4  (optional)
 Bandwidth  2/2.5/4/8M(adjustable)
 A/V Interface  BNC / RCA
 Encryption  AES 128 bit / ALLTECH Basic scrambling
 Flatness

Full band≤2dB ,8MHz≤0.5dB

 Carrier  2K,8K
 SHG   >52dBc
 Video Signal  1Vp-p@75Ω,NTSC/PAL adaptive
 CBER  <2.0E-4
 Video Compression  H. 264/MPEG-2 4:2:0 /MPEG-4 (optional)
 Resolution  720×576(PAL) , 720×480(NTSC)
 Video/image  720x576 @ 8MHz, 352x288 @ 1.25MH
 RS232/RS485 control interface  Standard RS232/RS485 level,9600,8,N,1
 RS232/RS485 data interface  Standard RS232/RS485 level ,support 1200~115200
Video Input 1Vp-p@75Ω,NTSC/PAL (autoadaptation)
 Audio Input  Analog stereo left and right channels
 RF Interface  N(type)
 AV Interface  BNC
 Video decoding  ISO/IEC13818-2 MPEG-2MP@ML
OperatingTemperature  -25℃~55℃
 Storage Temperature  -40℃~70℃
 Distance

150 km LOS distance (on helicopter),

5-6km NLOS distance(in city)

 Material Type of Case  Aluminum (black)
 Size 200*130*60mm
 Weight 2.8kg



90 Degree 5V FPV Camera Small Security Cameras With Night Vision 0



90 Degree 5V FPV Camera Small Security Cameras With Night Vision 1

90 Degree 5V FPV Camera Small Security Cameras With Night Vision 2



Receiver parameters:



 Frequeny/AV 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
 Frequeny/DATA  200-270MHz(adjustable)
 Modulation  COFDM 2K QPSK
 Receive sensitivity -105dBm
Voltage  DC12-14V
 Constellation QPSK,16QAM,64QAM (optional)
 RF Level Input  -92dBm~-20dBm / -105dBm~-20dBm
  RF Impedance  50Ω
  Carrier  2K,8K
 FEC  1/2,2/3,3/4,5/6,  7/8  (optional)
 Guard Interval  1/32,1/16,1/8,1/4  (optional)
 Bandwidth  2/2.5/4/8M(adjustable)
 Video Decoding  ISO/IEC13818-2  MPEG-2MP@ML
 AV output  2 Audio output+2Video input
 Audio output mode  Analog stereoStereo unbalanced 300/200 mV
 Video resolution  720x576 @ 8MHz, 352x288 @ 1.25MHz
Video format  PAL / NTSC (autoadaptation)
 Audio output  Analog stereo left and right channels
aspect ratio  4:3, 16:9
 Encryption  AES 128 bit / ALLTECH Basic scrambling
 Carrier  2K,8K
 Video Compression  MPEG-2 4:2:0 /MPEG-4 (optional)
 Resolution  720×576(PAL) , 720×480(NTSC)
 RS232/RS485 control interface  Standard RS232/RS485 level,9600,8,N,1
 RS232/RS485 data interface  Standard RS232/RS485 level ,support 1200~115200
 RF Interface  N(type)
 AV Interface  BNC
OperatingTemperature  -25℃~55℃
 Storage Temperature  -40℃~70℃
 Size 430*310*65mm(1U chassis)
 Weight 3.8kg



Packaging Details

Accessories

2*antennas (customized); RF cables and mounted kits.

Style

Paper carton

Size

Undetermined



Digital Video Transmitter Application:
